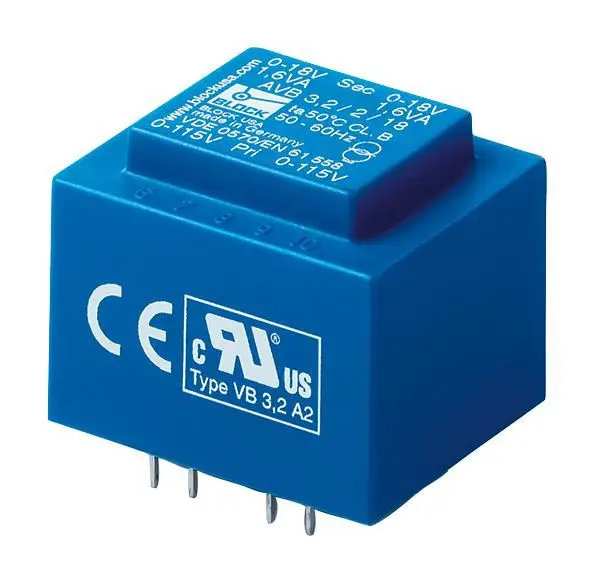

BLOCK - Transformer, 2.3VA - 24V

The BLOCK - Transformer, 2.3VA is a high-quality safety isolating transformer engineered for dependable performance in demanding electrical applications. It provides safe galvanic isolation between its input and output sides, making it a fundamental component for creating both SELV (Safety Extra-Low Voltage) and PELV (Protective Extra-Low Voltage) circuits. This crucial safety feature helps to mitigate the risk of electric shock in sensitive or potentially hazardous environments.

Crafted for exceptional durability, the transformer utilises an advanced XtraDenseFill resin encapsulation. This process provides permanent corrosion protection, delivers a high insulation value, and ensures maximum electrical reliability over the product's lifespan. The robust potting material is inherently self-extinguishing and the transformer design is proof against short circuits, enhancing operational safety and equipment protection.

The compact design achieves a minimal footprint while sustaining a high output, making it ideal for space-constrained installations. It is specifically rated for reliable operation in high ambient temperatures, ensuring stable performance in challenging industrial conditions. A key functional benefit is its dual secondary output voltage configuration, offering the flexibility to be connected in either series or parallel to suit various circuit voltage and current requirements.

With its through-hole mounting design, the transformer is perfectly suited for secure installation onto printed circuit boards (PCBs). This model is part of the reputable VB Series, known for its quality and consistency in power management applications. Its combination of safety features, compact size, and robust construction makes it an indispensable component for engineers and designers working on industrial controls, safety systems, and other power management solutions where reliability and isolation are paramount.

Variant Details

• Size: 24V
