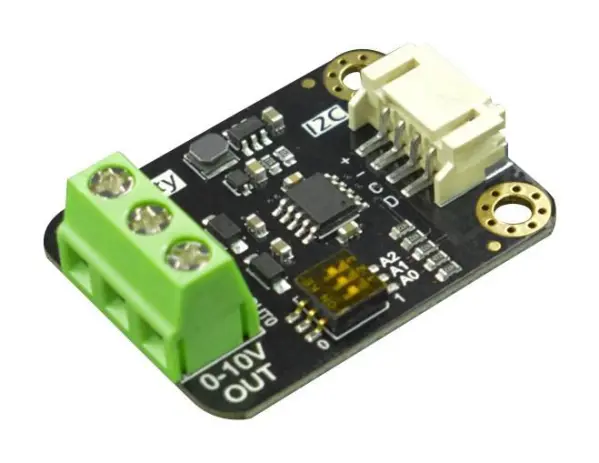

DFROBOT Gravity 2-Channel I2C DAC Module 0-10V

The DFROBOT Gravity 2-Channel I2C DAC Module provides a reliable solution for outputting a standard 0-10V analogue voltage, making it an ideal driver for various industrial applications. Designed for seamless integration, this module supports both 0-5V and 0-10V output across its two channels, allowing you to connect and control standard analogue voltage devices with ease.

Engineered for precision, the module boasts an output voltage error of less than 0.5%. Safety is also a priority; featuring Over-Current Short Circuit Protection (OSCP), the chip automatically enters protection mode and halts output if a short circuit between the output and GND occurs.

Utilising the Gravity interface and I2C communication, this DAC module is easily controlled via Arduino for program automation. The on-board DIP switch allows you to adjust between 8 different I2C addresses, enabling you to cascade and control up to 16 devices simultaneously. It supports a versatile 3.3V to 5V power supply, ensuring compatibility with a wide range of microcontrollers.

Applications

This module is highly versatile and can be used with most 0-10V devices on the market. Typical applications include:

• Intelligent function signal generators
• Automatic controlling of lighting or fountains
• Automatic and quick transformation of small equipment
• Automatic debuggers for electromechanical equipment
• Control of light controllers, inverters, valves, and pumps

Key Specifications

• Output Voltage: 0-5V / 0-10V (2-Channel)
• Communication Protocol: I2C (Gravity Interface)
• Power Supply: 3.3V - 5V
• Output Voltage Error: Less than 0.5%
• I2C Addresses: 8 adjustable options (control up to 16 devices)
• Short Circuit Protection: Yes (OSCP)
• Dimensions: 43 mm x 33 mm x 15 mm
• Weight: 16 g
