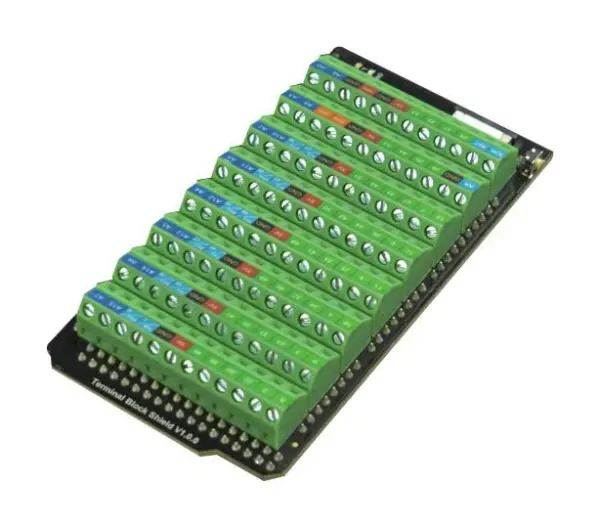

DFROBOT Terminal Block Shield for Arduino Mega

The DFROBOT Terminal Block Shield for Arduino Mega is a reliable and convenient solution for securing your wiring in any project. By using terminal blocks instead of jumper wires, this shield ensures a stable, vibration-proof connection every time. It is designed specifically for Arduino Mega boards, making it an ideal addition for commercial installations, art shows, and more.

Featuring multiple 3.3V, 5V and GND ports, this shield simplifies your wiring layout, reducing clutter and potential errors. It accepts a wide 7 to 24V power input without needing an extra buck-down circuit, and supports a maximum load power of 10W. The on-board 18-pin FPC socket provides a neat and easy way to connect a screen.

Key Features

• Stable & Reliable Connection: Screw terminal blocks secure wires firmly, preventing accidental disconnections.
• Easy Wiring: Multiple power and ground ports allow for straightforward project setup.
• Wide Power Range: Input from 7V to 24V DC without external conversion.
• High Load Capacity: Supports up to 10W for your connected devices.
• Screen Connectivity: Includes an 18-pin FPC socket for convenient display hookup.

Specifications

• Terminal block pitch: 3.5mm
• Cable size range: 26AWG to 16AWG
• Wire strip length: 5mm
• Screw size: M2
• Dimensions: 101.5 x 53.3mm / 4.00 x 2.10 inches

Whether you're prototyping or building a permanent installation, the DFROBOT Terminal Block Shield offers the robustness and simplicity you need for your Arduino Mega projects.
