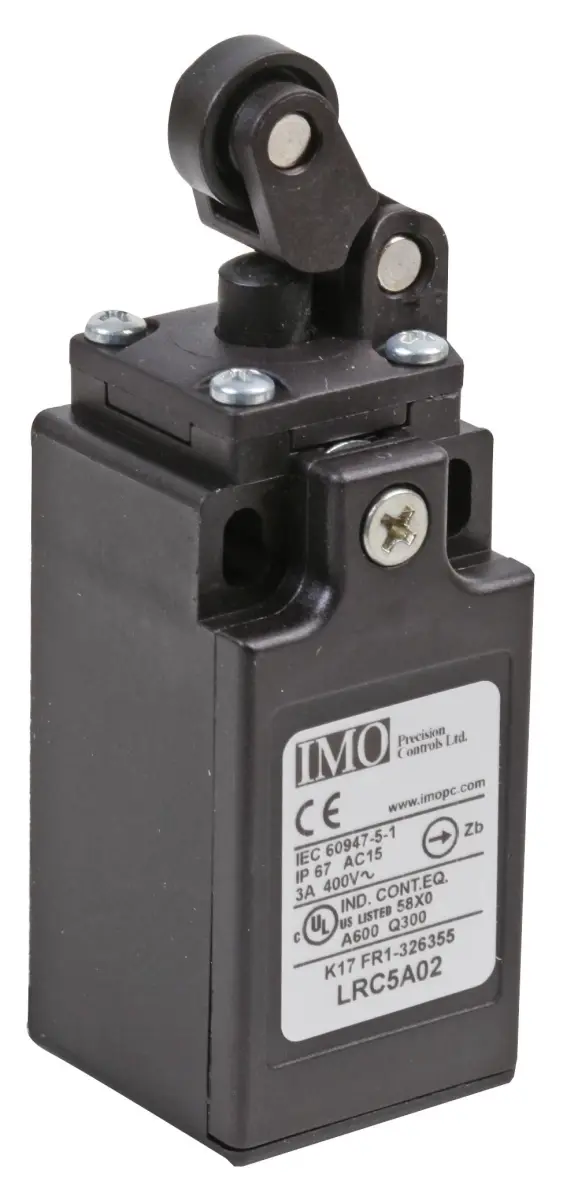

IMO Precision 1-Way Roller Limit Switch, 1NO 1NC, 3A 400V AC, IP67

The IMO Precision 1-Way Roller Limit Switch is a compact and robust device designed for precise position sensing and control in demanding industrial environments. With an IP67 rating, it is protected against dust ingress and temporary immersion in water, making it suitable for use in harsh conditions such as factory floors, machinery, and outdoor applications. Its technopolymer housing offers excellent durability and chemical resistance.

Featuring a single-pole, double-throw contact configuration (1NO/1NC), this switch provides versatile control options. It is rated for a maximum current of 3A at 400V AC, allowing it to handle a range of electrical loads reliably. The actuator is a roller lever top, designed for smooth and consistent operation with a maximum operating force of 25N, ensuring reliable actuation from cams, moving parts, or machinery.

Part of the reliable LR Series, this limit switch is engineered for longevity and consistent performance. Its compact dimensions facilitate easy installation in space-constrained locations. The product includes one conduit entry point for secure cable connection, contributing to a tidy and professional installation.

Key Applications

• Ideal for use on automated machinery to detect the end of travel or a specific position.
• Perfect for conveyor systems to control sorting, routing, or stopping mechanisms.
• Suitable for packaging equipment to ensure precise operation cycles.
• Effective in material handling systems for position verification and safety interlocks.

This limit switch combines functional reliability with a rugged design, providing a cost-effective solution for industrial automation and control tasks where accuracy and environmental protection are paramount.
