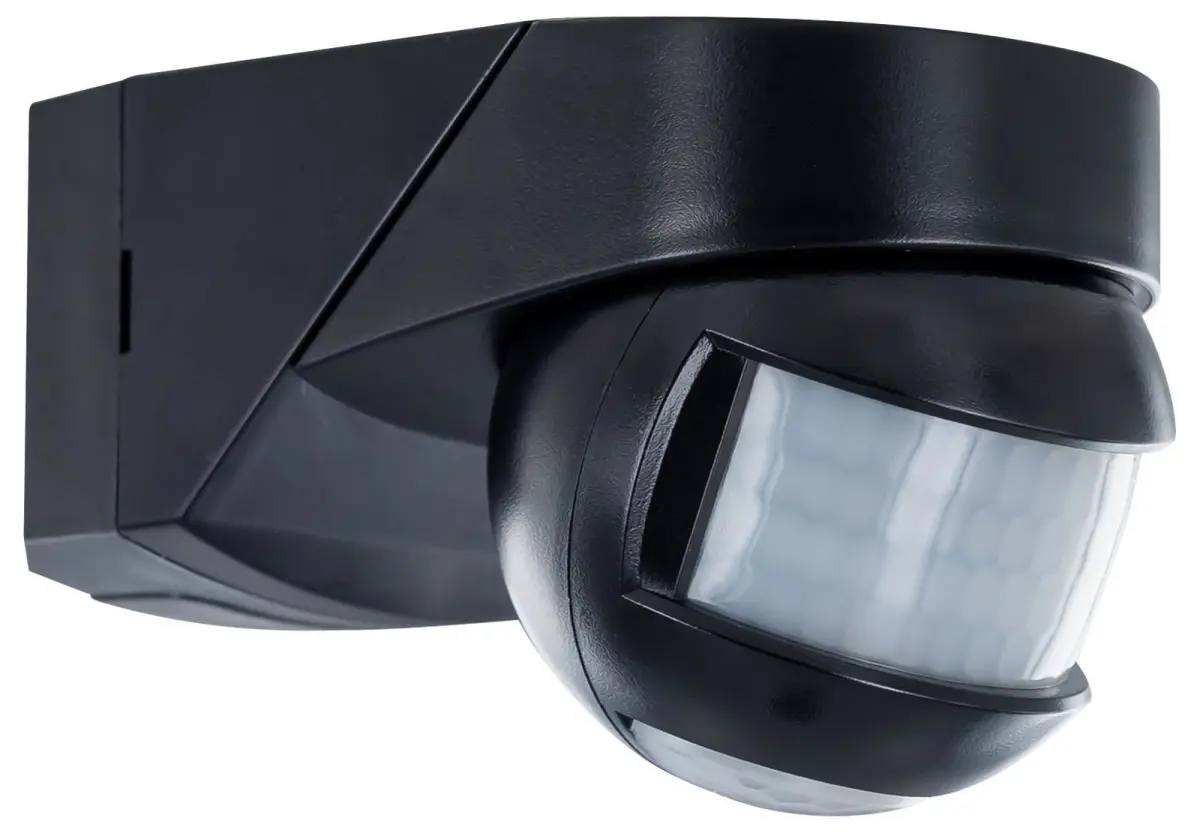

Integral Dual Detector PIR Sensor IP54 Black

Enhance your lighting setup with the Integral LED Dual Detector PIR Motion Sensor. Designed to deliver precise detection and optimal functionality, this advanced 4-in-1 sensor offers versatile installation options, making it suitable for residential, commercial, and outdoor environments.

Versatile Mounting and Detection

Featuring a highly adaptable 4-in-1 mount, this sensor can be installed on a wall, ceiling, in-corner, or on-corner. It provides dual detection capabilities with 180° and 360° coverage, achieving a maximum sensing radius of 12 metres. The sensitivity is adjustable across three settings: Low (2m), Medium (6m), and High (12m).

Customisable Operation

Tailor the sensor's performance to your exact needs with multiple hold time options ranging from 10 seconds up to 30 minutes. The built-in photocell enables dusk-to-dawn operation, with adjustable daylight thresholds (less than 10, 25, 250, 500 lux, or 24H). Additionally, an 8-hour override mode provides continuous illumination when required.

Robust Specifications

Rated to handle substantial loads, this black PIR sensor supports up to 2000W for incandescent lighting and 1000W for LED setups. With an IP54 rating, it is well-protected against dust and water splashes, ensuring reliable outdoor use. The unit has compact dimensions of 43mm in height, 33mm in width, and 15mm in depth, and weighs 224 grams.
