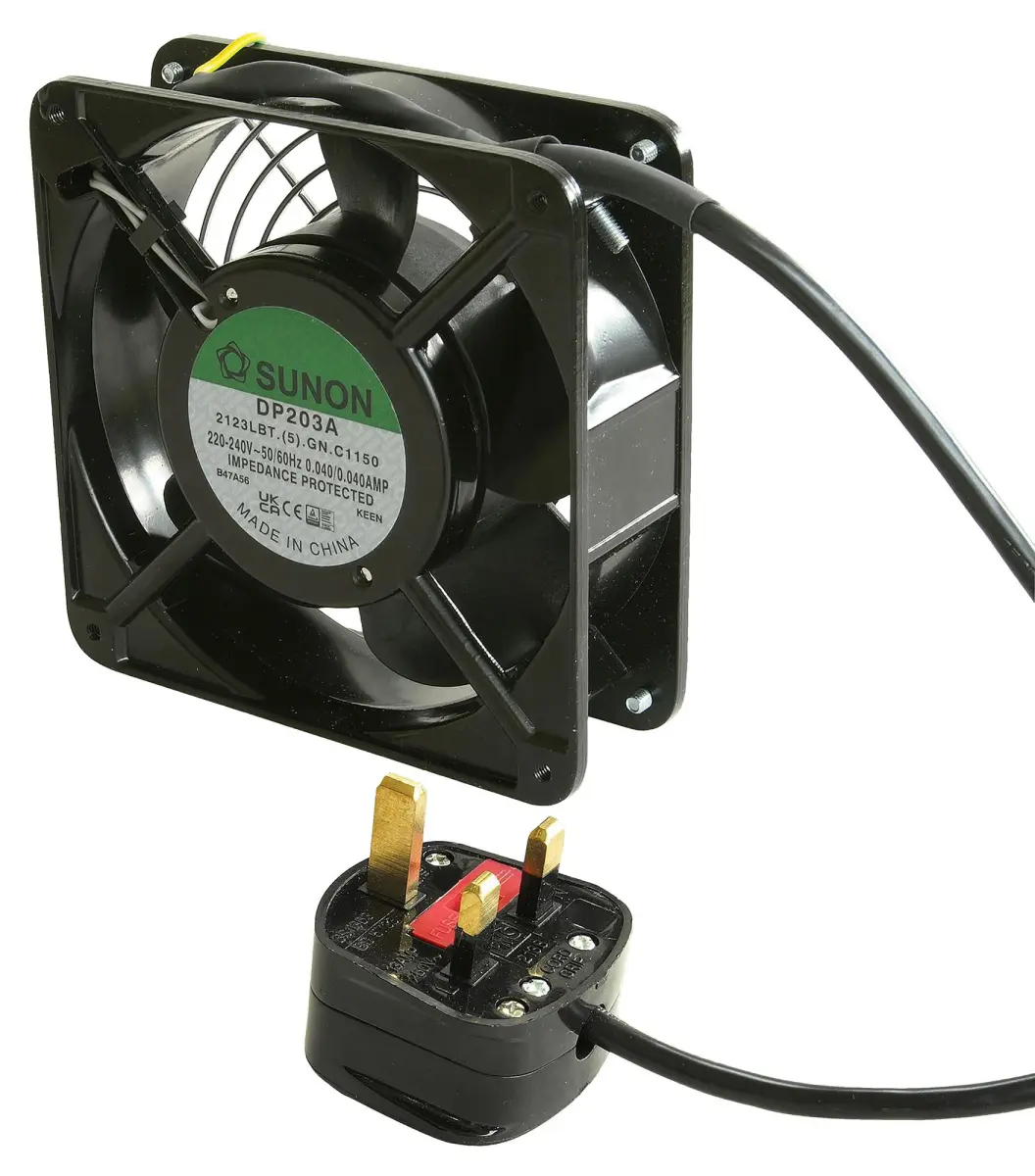

KAUDAIR Data Cabinet Extractor Fan with Filter & Switched Lead - 1.5m

The KAUDAIR Data Cabinet Extractor Fan with Filter & Switched Lead is a professional-grade cooling solution designed to meet the demands of modern data cabinets. Engineered to fit any standard 120mm fan aperture, this kit provides efficient airflow and reliable protection for your valuable networking equipment.

This comprehensive kit includes a black plastic filter pre-attached to the fan, preventing dust ingress from the cabinet interior and maintaining optimal performance. Installation is straightforward: simply attach the silicone gasket and secure the fan to the cabinet using the provided 4mm fixing screws. The threaded M4 slots eliminate the need for nuts, simplifying the process even further.

Key Features:

• Quiet Operation: Tested at a low noise level of 25/26dB(A), this fan ensures minimal disruption in your workspace.
• Efficient Airflow: Delivers 49/50 CFM of air while consuming only around 8W of power, making it an economical choice for continuous 24/7 operation.
• Safety Assured: Impedance protected and fused at 1A, compliant with all current UK/EU safety standards, and UKCA, CE, and TUV approved.
• Locked Rotor Protection: If the fan is blocked by an external force, the power automatically cuts off to prevent coil temperature increase, and restarts once the obstruction is removed.
• Convenient Control: The switched lead allows you to turn the fan off directly at the PDU, eliminating the need to access the cabinet top.
• Complete Package: Includes a metal finger guard, rubber gasket, filter case with mesh filter, and all necessary fixings.

With dimensions of 120x120x38mm and a UK mains plug (Type G), this fan is ready for use in the UK, Ireland, Cyprus, Saudi Arabia, Malta, and many other countries. Prepared, sheathed, and secured mains wires ensure safe handling during installation and maintenance. Keep your data cabinet cool, clean, and reliable with K’

Variant Details

• Size: 1.5m
