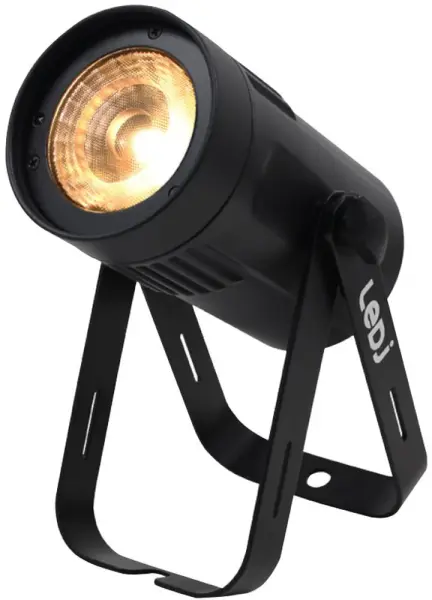

Ledj Event Spot DTW LED Pinspot Black

The Ledj Event Spot DTW LED Pinspot Black is a 15W LED pinspot that delivers output equivalent to a traditional 100W halogen lamp while consuming significantly less power and generating minimal heat. It is designed for display highlighting and ambient mood creation across a wide range of applications.

Overview

At its core is a tunable amber and warm white LED, which allows the fixture to suit a variety of lighting atmospheres. The black finish makes it suitable for retail displays and hospitality settings, and the fixture is engineered for precise control and flexibility.

Dim to Warm Profile

The Dim to Warm traditional halogen dimming profile allows the colour temperature to transition smoothly from 1900K to 3000K as the output is reduced. This replicates the nostalgic feel of dimming a halogen source.

Optics and Accessories

The fixture has a native 20° beam angle. Two optional frost lenses are supplied, a soft edge lens and a 45° lens, giving control over the spread and quality of light. The included versatile bracket supports multiple rigging options or stable floor-standing use, making installation adaptable to different venue layouts.

Key Features

• 15W tunable amber and warm white LED
• Dim to Warm profile from 1900K to 3000K
• Native 20° beam angle with two optional frost lenses
• Selectable 1 or 2 DMX channels
• Backlit LCD with 4-button menu
• UK mains plug (Type G)

Control and Connectivity

Control is comprehensive and user-friendly. The fixture offers selectable 1 or 2 DMX channels and manual and master/slave operational modes. Full 0-100% dimming and a variable strobe function are available, and the intuitive 4-button menu with backlit LCD display supports on-site programming and adjustment.

Power and Connections

Power distribution is provided by a PowerCON TRUE1 input and output, alongside 3-pin XLR input and output for daisy-chaining DMX signals. The universal power supply (100-240V, 50/60Hz) is suitable for use in the UK and internationally, and the fixture is supplied with a UK mains plug (Type G). The convection-cooled design supports quiet, maintenance-free operation.

This fixture suits displays and venues that require a versatile, DMX-controlled pinspot with adjustable warm ambient lighting.
