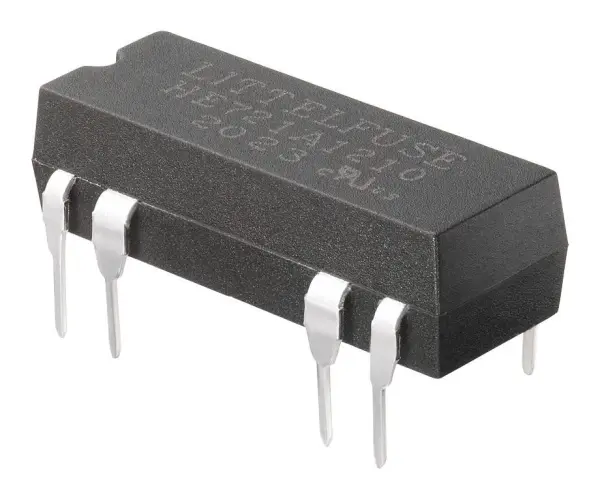

LITTELFUSE Reed Relay DIL Package - 12V

The LITTELFUSE HE700 Series reed relay is a high-reliability, miniature dual in-line (DIL) component designed for precision switching in demanding electronic applications. Its hermetically sealed contacts are completely isolated from the environment, providing immunity to dust, moisture, and atmospheric contaminants, ensuring consistent performance and long operational life. This robust design is further enhanced by a transfer moulded package that offers superior mechanical protection for the internal components.

Engineered for efficiency, this relay consumes significantly lower coil power compared to traditional electromechanical relays, making it an ideal choice for energy-sensitive circuits. The integrated coil suppression diode protects sensitive control circuitry from voltage spikes and transients generated during switching. With a broad operating temperature range from –40°C to +85°C, it is built to perform reliably in harsh industrial environments.

Key Features & Benefits

• Space-Saving Design: The compact DIL footprint allows for high-density PCB layouts, saving valuable board space without compromising on functionality or flexibility.
• Robust Construction: The hermetically sealed switching mechanism and moulded package provide maximum protection against environmental factors and physical stress.
• High Reliability: Immune to contact oxidation and suitable for low-current, low-voltage switching where signal integrity is critical.
• Versatile Compatibility: Available in various contact configurations within the same form factor, simplifying inventory and design choices.
• Safety Certified: UL recognised to UL 508 as an industrial control switch, meeting stringent safety standards for control applications.

This relay is a cornerstone component for designers and engineers seeking a dependable, long-life switching solution that combines low power consumption, a

Variant Details

• Size: 12V
