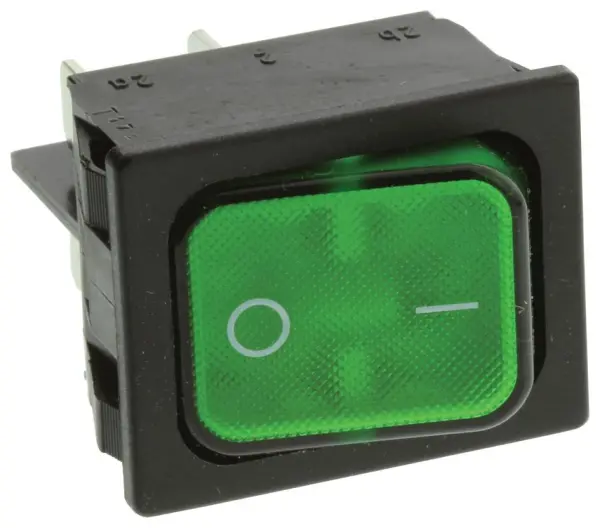

MARQUARDT 1830 Series Rocker Switch, DPST On-Off, Panel Mount - Green

The MARQUARDT 1830 Series Rocker Switch is a professional-grade, double-pole single-throw (DPST) switch designed for robust industrial and commercial applications. Featuring a high-inrush current capability, it is engineered to reliably control demanding loads with a mechanical life endurance of up to 1 million switching cycles, ensuring long-term durability and performance.

This illuminated rocker switch offers clear visual status indication. The panel-mount design provides a secure and flush installation in control panels, machinery, and electrical enclosures. It utilises 6.3mm quick-connect terminals for fast, tool-free wiring, streamlining the installation process and saving valuable time.

Constructed for safety and reliability, the switch boasts a robust black PA housing for excellent insulation and mechanical strength. Key internal components include silver-plated bearings and external connections for optimal conductivity and corrosion resistance, alongside silver (Ag) contacts for a reliable electrical connection with low contact resistance.

Specifications & Features

• Electrical Rating: 20A at 250V AC, suitable for a wide range of high-power applications.
• Operation: Off-On switch action for straightforward control.
• Safety Ratings: Features a ≥3mm contact distance for enhanced electrical isolation, and is rated IP40 for protection against solid objects larger than 1mm.
• Material Safety: The housing meets the UL94V-2 flammability rating and offers a 250 PTI (Proof Tracking Index) for reliable insulation performance.
• Terminal Connection: Equipped with quick-connect terminals requiring ≤80N of plug force for a secure fit.
• Durable Construction: Engineered for a high cycle life and consistent switching performance in demanding environments.
