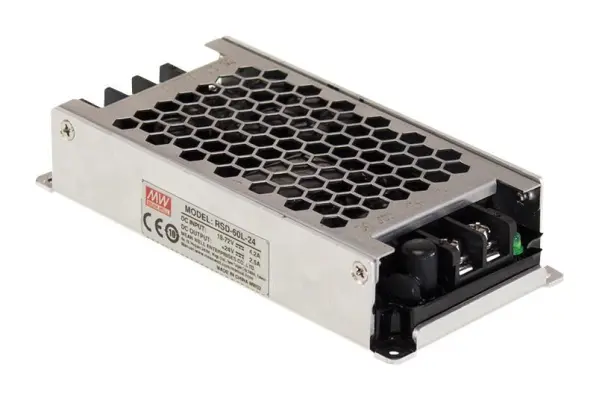

MEAN WELL Isolated Chassis Mount DC/DC Converter - 24V 2.5A 60W

The MEAN WELL Isolated Chassis Mount DC/DC Converter is a high-performance, enclosed-type power module engineered for demanding industrial applications. Designed with supreme electromagnetic compatibility (EMC) characteristics and exceptionally low ripple and noise, it delivers stable and clean power in challenging environments. The unit's robust construction, featuring a reinforced 4000VDC isolation barrier and a semi-potted silicone interior, provides superior protection against electrical interference and mechanical stress, making it a reliable cornerstone for critical systems.

This converter excels in harsh conditions, capable of operating in areas with high vibration, significant dust levels, and extreme temperatures ranging from -40°C to +55°C without derating. Its ultra-compact 1U low-profile design, with a height of just 25mm, allows for efficient use of space in crowded control panels or equipment racks. The module includes comprehensive protection features such as short circuit, overload, over-voltage, and input reverse polarity safeguards, ensuring operational longevity and system safety.

Key Specifications & Features

• High Efficiency & Power: Typical efficiency of 92.5% with a rated output power of 60W, minimising energy loss and heat generation.
• Wide Input Range: Accepts a continuous DC input voltage from 9V to 36V, offering excellent flexibility for various supply sources.
• Robust Isolation: Features 4000VDC reinforced isolation between input and output, crucial for safety and noise immunity in sensitive applications.
• Compact Design: Dimensions of 128mm x 60mm x 25mm (L x W x H) ensure a space-saving installation with no minimum load requirement.
• Operational Indicators: Includes a built-in LED indicator for clear power-on status.
• Cooling Method: Relies on efficient free air convection, eliminating the need for noisy fans.

With its

Variant Details

• Size: 24V 2.5A 60W
