Mitch Electronics Traffic Light Project Kit

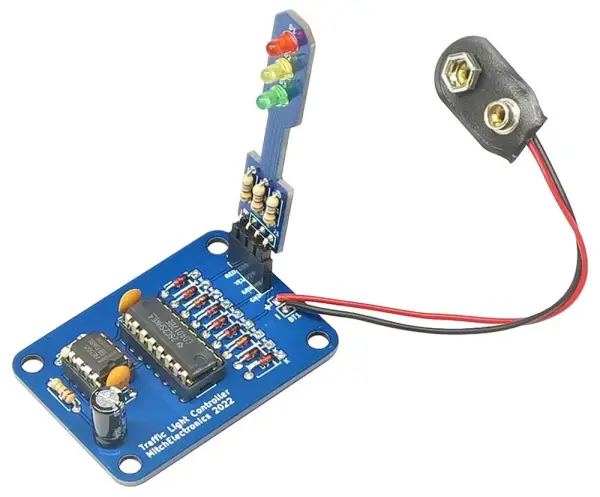

The Mitch Electronics Traffic Light Project Kit is a hands-on electronics kit that replicates the UK traffic light colour sequence, with a printed circuit board measuring 43 mm by 59 mm.

Designed as a miniature replica of the classic British traffic light system, this kit suits beginners and enthusiasts alike. It can be assembled in under an hour and introduces fundamental soldering techniques and basic circuit construction.

Overview

The circuit is built around a 555 astable oscillator and a 4017 counter integrated circuit. Together these components reproduce the UK traffic light colour sequence of red, red and amber, green, amber and red, offering an educational insight into timing circuits alongside a functional finished model.

Key Features

• Replicates the UK traffic light colour sequence
• Supplied as a complete kit for learning essential soldering skills
• Pre-designed printed circuit board with clear instructions
• Assembly typically completed in less than sixty minutes
• Finished unit suitable for model railways, architectural dioramas and other scale model layouts
• Expandable design allows connection of additional sets of lights for more complex projects and intersections
• Powered by a standard 9V PP3 battery (battery not included)

Applications

Suitable for students seeking a stimulating STEM project, hobbyists building scale model layouts, and anyone looking for a practical introduction to electronics. The kit provides an educational introduction to timing circuits and basic circuit construction.

Choose the Mitch Electronics Traffic Light Project Kit for a compact, hands-on electronics project that combines soldering practice with a functional miniature traffic light model.
