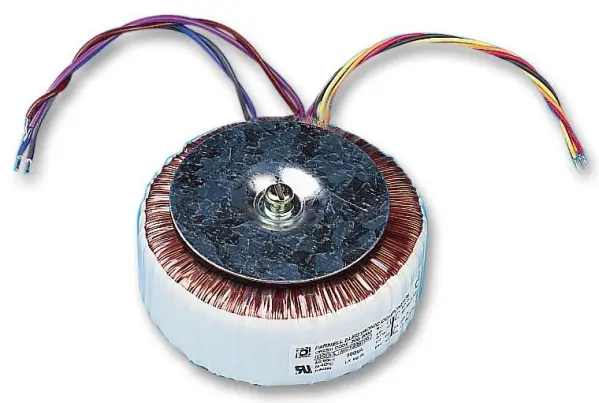

MULTICOMP PRO 60VA Toroidal Transformer - 15V

The MULTICOMP PRO 60VA Toroidal Transformer from the MCTA series is a robust and versatile general-purpose component, designed for reliability in a wide range of electronic and industrial applications. Featuring an efficient toroidal core design, it offers superior performance with low electromagnetic interference and reduced hum compared to traditional laminated transformers.

This transformer is equipped with dual primary and dual secondary windings, providing exceptional flexibility for various voltage requirements. The dual primary windings allow for connection in series or parallel, accommodating input voltages of 115V or 230V. The dual secondary windings, each providing 18VAC, can be connected in series to double the voltage or in parallel to increase the current capacity, or used independently for separate circuits.

Key Features & Construction

• Double Insulated Primary Lead-Out: Enhances safety by providing an extra layer of insulation on the primary side.
• Flexible Flying Leads: The wire leads can be easily trimmed to the required length without needing to strip the enamel coating, simplifying installation and customisation.
• Comprehensive Testing: Every unit undergoes 100% electrical and flash testing to ensure compliance with safety standards and reliable operation.
• Complete Mounting Kit: Supplied with a dished mounting plate, two foam pads, and the necessary screw, nut, and washer for secure panel mounting.

With a power rating of 60VA and a nominal secondary current of 1.67A, this transformer is engineered for consistent performance in power supply circuits, audio equipment, control systems, and general industrial power management. The unpotted toroid centre allows for effective heat dissipation. Its compact dimensions make it an excellent choice for applications where space is at a premium, without compromising on power delivery or quality.

Variant Details

• Size: 15V
