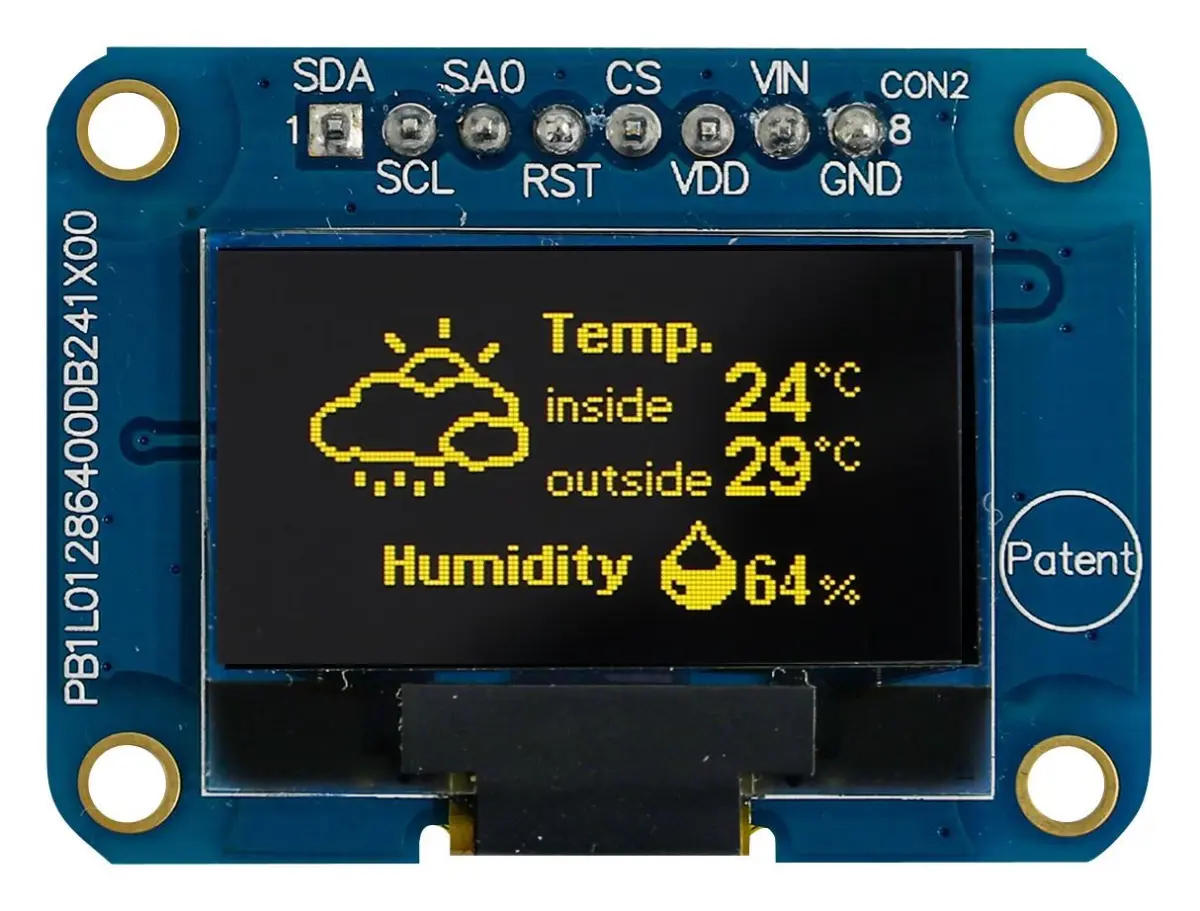

OLED Graphic Display Module 128x64 Yellow on Black I2C SPI

The MIDAS DISPLAYS OLED Graphic Display Module offers a high-contrast yellow-on-black passive matrix display with a resolution of 128 x 64 pixels. This compact module is designed for applications requiring clear, monochrome graphics and text, providing sharp visuals with low power consumption.

The display is built on the reliable SSD1306BZ controller IC, supporting both I2C and SPI interfaces for seamless integration with microcontrollers and single-board computers. With a logic voltage of 3V, it is compatible with a wide range of digital systems and is suitable for battery-powered devices.

Key Features

• 128 x 64 dot matrix resolution
• Yellow on black monochrome display
• Passive matrix with 1/64 duty
• Compact module size: 38.00x28.50x2.37mm
• Active area: 21.74x10.86mm
• Dot size: 0.148x0.148mm
• Dot pitch: 0.17x0.17mm
• Operating temperature range: -40°C to +80°C

The module's compact design and robust construction make it ideal for embedded projects, industrial control panels, and portable instrumentation. The chip-on-board (COB) construction ensures reliable performance in demanding environments.
