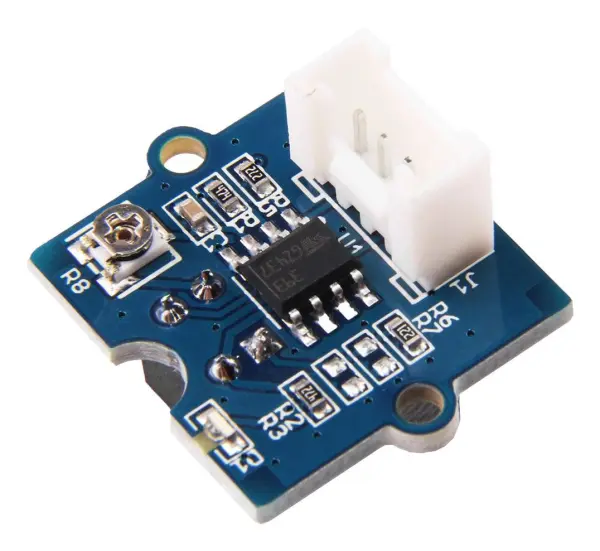

SEEED STUDIO Grove IR Distance Interrupter Module v1.2

The SEEED STUDIO Grove IR Distance Interrupter Module v1.2 is a versatile sensor designed to detect the presence or proximity of an object. It operates on the principle of reflected infrared light, utilising an integrated LED and phototransistor (ITR9909) to sense changes in distance. This makes it an ideal component for creating presence detection, object counting, or line-following systems in your projects.

A key feature is its adjustable detection range, which can be finely tuned from 90mm to 300mm using the onboard potentiometer. The module provides a straightforward TTL digital output, delivering a logical HIGH signal when a dark (black) surface is detected and a LOW signal when a light (white) surface is detected, simplifying integration with microcontrollers.

Key Features & Specifications

• Sensor Type: Infrared (IR) distance/interrupter
• Core Component: ITR9909 photo sensor
• Output Signal: TTL digital (High/Low)
• Detection Logic: High output for black surfaces, Low output for white surfaces
• Adjustable Range: 90mm to 300mm via potentiometer
• Power Supply: 5V DC
• Grove Compatibility: Connects easily via the included Grove cable
• Compact Dimensions: 20mm x 20mm module size

Supplied as a complete module with a Grove connection cable, it is ready for immediate use. Its compact form factor and simple digital interface make it perfect for prototyping and integration into a wide array of electronic and robotic applications where reliable, contactless object detection is required.
