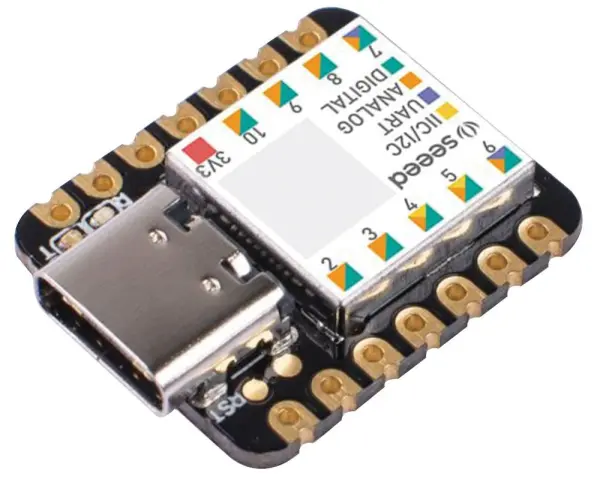

SEEED STUDIO Seeeduino XIAO SAMD21 Cortex M0+ Arduino Controller

The SEEED STUDIO Seeeduino XIAO is the smallest Arduino-compatible board in the Seeeduino family, offering exceptional versatility in a remarkably compact form factor. Embedded with the powerful SAMD21 microchip, this microcontroller features an ARM® Cortex®-M0+ 32-bit processor running at 48MHz, alongside 256KB of flash memory and 32KB of SRAM.

Despite its miniature board dimensions of just 20 x 17.5mm, the Seeeduino XIAO boasts a rich set of interfaces. It provides 11 digital/analogue pins, 10 PWM pins, 1 DAC output, 1 SWD, 1 I2C, 1 UART, and 1 SPI interface, ensuring it is highly capable for diverse development tasks.

Fully compatible with the Arduino IDE, this development board is breadboard-friendly for easy project operation. Its incredibly small footprint makes it an ideal choice for wearable devices and other space-constrained projects.

Package Contents

• 1 x Seeeduino XIAO Arduino Microcontroller (SAMD21 Cortex M0+)
• 2 x 7-pin headers
• 4 x Pasters
