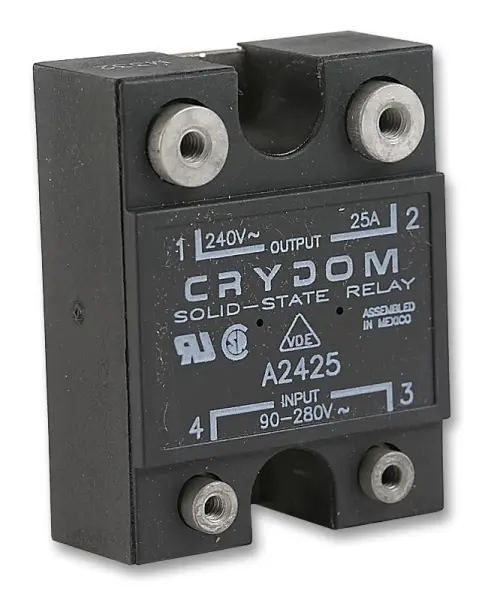

Sensata/Crydom A2425 Solid State Relay 25A 240V AC Panel Mount

The Sensata/Crydom A2425 Solid State Relay is a panel-mount SSR with a 25A load current rating, designed for AC output switching in heavy industrial loads.

The A2425 is part of the Sensata/Crydom Series-1 range and offers an operating voltage range of 24VAC to 280VAC, with a control voltage range of 90VAC to 280VAC. It is intended for power management and process control applications, including industrial automation and control panels.

Key Features

• SPST-NO contact configuration
• Zero-crossing switching mode
• Redesigned housing with anti-rotation barriers for secure installation
• Improved SEMS screw and washer for terminations
• EMC compliant to Level 3
• Epoxy-free design
• UL94V-0 flammability rating
• Direct bond copper substrate and direct power lead frame

Construction and Installation

The relay features a direct bond copper substrate and a direct power lead frame, which enhance thermal management and electrical conductivity. The housing is designed for panel mounting and uses screw terminals. The relay measures 43 mm high, 33 mm wide and 15 mm deep, with a weight of 140 grams.

Applications

Suitable for industrial automation, power management and process control systems. It can be used when upgrading existing equipment or when designing new control panels that switch heavy AC loads.

Choose the Sensata/Crydom A2425 Solid State Relay for AC switching of heavy industrial loads up to 25A, with zero-crossing switching and screw-terminal panel mounting.
