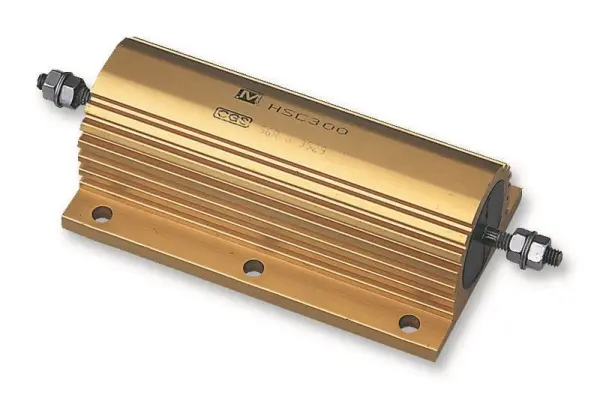

TE Connectivity HS Series High Power Panel Mount Resistor - 300W

The TE Connectivity HS Series High Power Panel Mount Resistor is a premium-quality, aluminium-housed component engineered for demanding applications where stable performance and high-power dissipation are essential. This chassis panel-mount resistor is part of a range celebrated for its exceptional stability and reliability, capable of handling significant electrical loads within a compact footprint while maintaining a relatively low surface temperature.

Constructed from high-quality materials, the resistor ensures optimum reliability and long-term stability under rigorous operating conditions. Its core technology utilises a precision wirewound element, housed within a robust aluminium casing. This design allows for the rapid and efficient dissipation of heat to a specified heat-sink, making it ideal for high-power circuits where thermal management is critical. The M6 threaded stud termination provides a secure and reliable connection point, simplifying installation in panel-mount configurations.

Key Features & Specifications

• Proven Reliability: Designed and manufactured to deliver consistent, dependable performance in challenging environments.
• High Power Rating: Capable of dissipating up to 200 watts, making it suitable for power control, braking, load testing, and other high-current applications.
• Efficient Thermal Design: The aluminium housing acts as an effective heatsink, transferring power rapidly as heat to maintain component integrity and system safety.
• Stable Resistance: Features a low temperature coefficient of ±50ppm/°C, ensuring minimal resistance drift across a wide operating temperature range.
• Robust Construction: Built with a wirewound element and durable aluminium housing for enhanced mechanical strength and longevity.
• Secure Termination: Equipped with an M6 threaded stud for a sturdy, vibration-resistant electrical and mechanical mount.<

Variant Details

• Size: 300W
