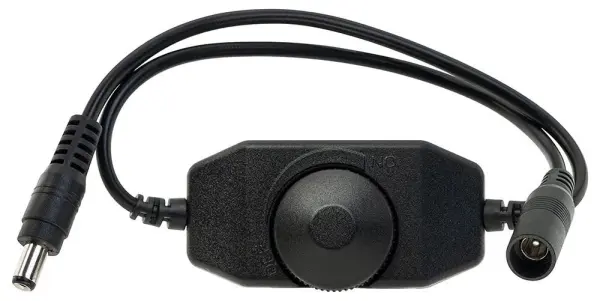

Tiger Power Supplies Inline LED Dimming Driver with Dial Control 12V/24V DC 2A - Black

Product Description

The Tiger Power Supplies Inline LED Dimming Driver with Dial Control is a versatile and compact unit designed to provide precise brightness adjustment for a wide range of 12V and 24V constant voltage LED lighting installations. This solid-state device offers a simple and reliable solution for controlling the ambience of your lighting, from accent lighting to full room illumination. Its primary function is to accept a constant DC voltage from an external power supply and output a Pulse Width Modulation (PWM) signal to dim connected LED strips or modules, all controlled via a convenient rotary dial.

Key Features and Operation

• Dial Control: Features an integrated rotary dial for smooth, continuous adjustment of brightness from 0% to 100%, as well as a clear on/off function. This provides intuitive, manual control over your lighting environment without the need for complex wiring or smart systems.
• Dual Voltage Compatibility: Engineered to work with both 12V DC and 24V DC input, offering flexibility for different LED strip specifications. It is crucial to pair this dimmer with a compatible constant voltage power supply unit (PSU) that matches your LED strip's required voltage.
• Constant Voltage Output: Operates as a constant voltage LED driver. The output voltage supplied by this unit is identical to the input voltage from your PSU. This ensures stable operation for LED strips designed for fixed voltage inputs.
• PWM Dimming Signal: Utilises Pulse Width Modulation technology to control brightness. This method is highly efficient and widely compatible with most constant voltage LED products, providing flicker-free dimming performance.
• Standard Connections: Equipped with a common 2.1mm DC input socket and includes a 2.1mm DC connector for easy integration into your existing low-voltage lighting circuit.
• Compact and Lightweight Design: With
