TRIAD MAGNETICS Audio Transformer, SP Series - 1W

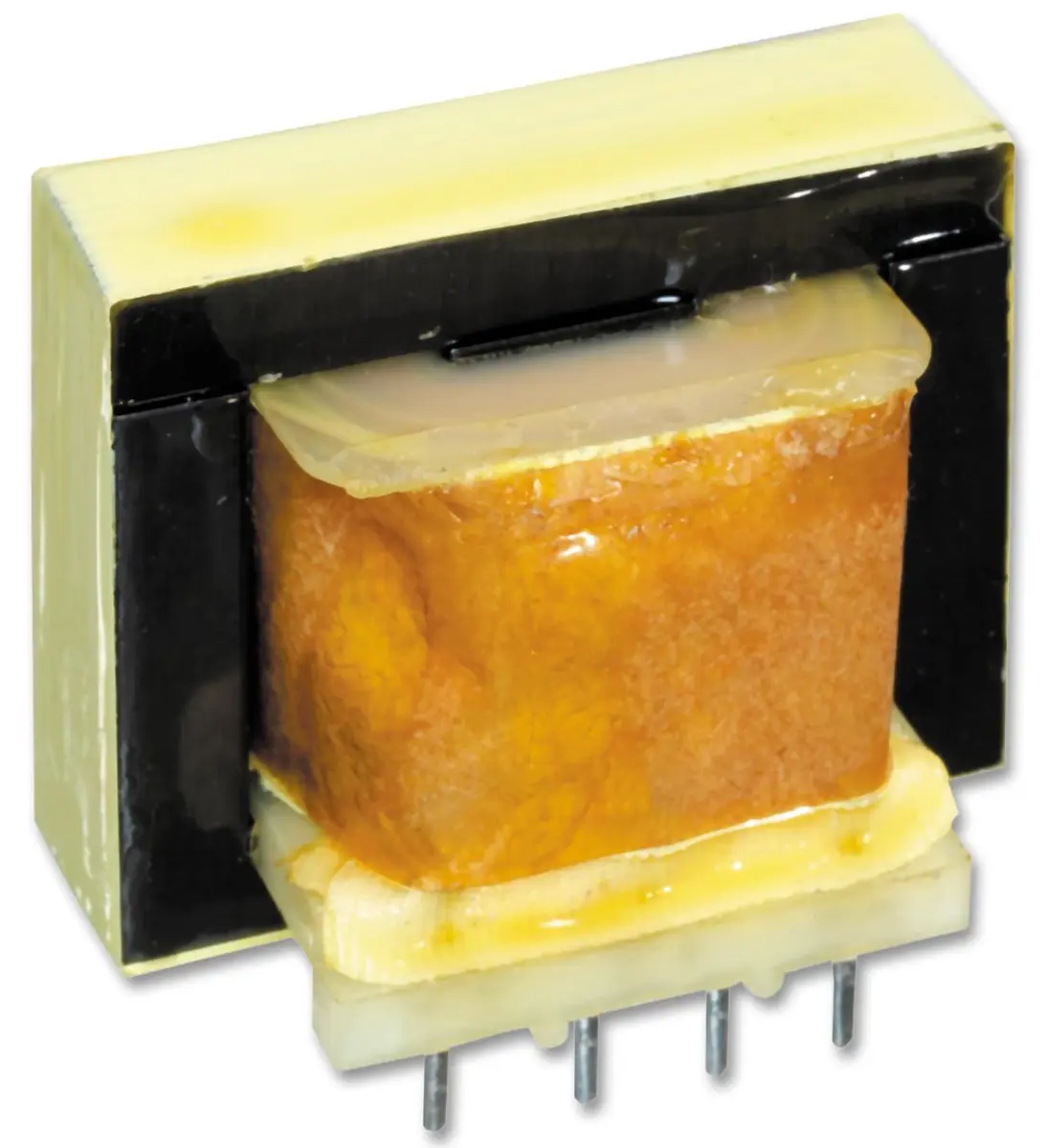

The TRIAD MAGNETICS SP Series Audio Transformer represents a high-reliability solution for demanding audio circuit designs, engineered for exceptional performance and durability. This component features a precision-engineered epoxy moulded case, offering robust physical protection and ensuring stable operation in a wide range of electronic environments. Its gold-plated PC pin leads provide excellent conductivity and solderability, enhancing long-term connection integrity.

Specially designed to meet the stringent TF5S21ZZ specifications, this transformer delivers exceptional audio frequency response from 300Hz to 100kHz, making it suitable for high-fidelity signal coupling and impedance matching applications. Its core function is to provide reliable 1:1 turns ratio transformation with matching centre-tapped primary and secondary impedances, ensuring signal integrity without introducing unwanted distortion.

The transformer's construction prioritises longevity and precision. The through-hole mounting design ensures a secure and stable installation on printed circuit boards, contributing to the overall mechanical robustness of the final assembly. With an isolation voltage of 1kV, it offers enhanced safety and protection against potential electrical faults, making it a dependable choice for professional and industrial audio equipment.

Ideal for integration into amplifiers, mixing consoles, communication devices, and other high-quality audio electronics, this transformer is a cornerstone component for engineers seeking reliability and performance. Its compact dimensions allow for efficient use of board space without compromising on electrical characteristics or build quality.

Variant Details

• Size: 1W
