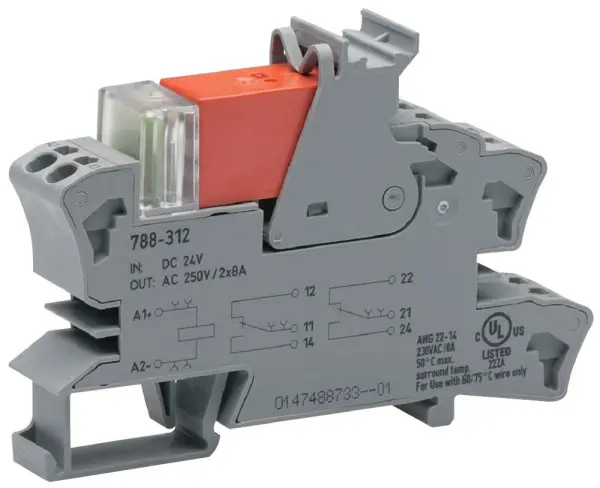

WAGO DC DIN Rail Relay Module, DPDT, 2 Changeover, 8A, 22AWG-14AWG - 24V

The WAGO DC DIN Rail Relay Module is a high-performance, compact control component designed for professional industrial and automation installations. This relay module features a DPDT (Double Pole Double Throw) contact configuration, providing two changeover contacts for flexible switching of electrical circuits. Its robust design is engineered for reliable operation in demanding environments, making it a cornerstone for control panels, machinery, and building management systems.

Constructed with durable silver nickel (AgNi 90/10) contacts, the module ensures a long electrical life and stable performance when switching loads. It is rated for a continuous current of 8A, with a high inrush current capacity for handling demanding start-up loads. The module is designed for a wide ambient temperature range, from -40°C to +70°C, ensuring functionality in both freezing and hot industrial settings. A clear red LED status indicator provides instant visual confirmation of coil energisation, aiding in quick diagnostics and system monitoring.

Installation is streamlined thanks to its DIN-35 rail mounting and push-in spring clamp terminals, which accept solid or fine-stranded conductors from 0.34 mm² to 2.5 mm². This connection technology allows for fast, tool-free wiring, reducing installation time and ensuring a secure, vibration-resistant connection. The module's compact grey housing has an IP20 protection rating, making it suitable for use inside control cabinets and enclosures where it is protected from direct contact with live parts and objects larger than 12.5mm.

Key Features & Applications

• Versatile Control: The 2 changeover contacts allow for complex switching logic, ideal for interlocking circuits, signal inversion, or controlling two separate circuits from a single DC signal.
• DC Coil Operation: The 12VDC coil, with a nominal input current of 36mA, is perfect for integration with PLC outputs, low‑

Variant Details

• Size: 24V
