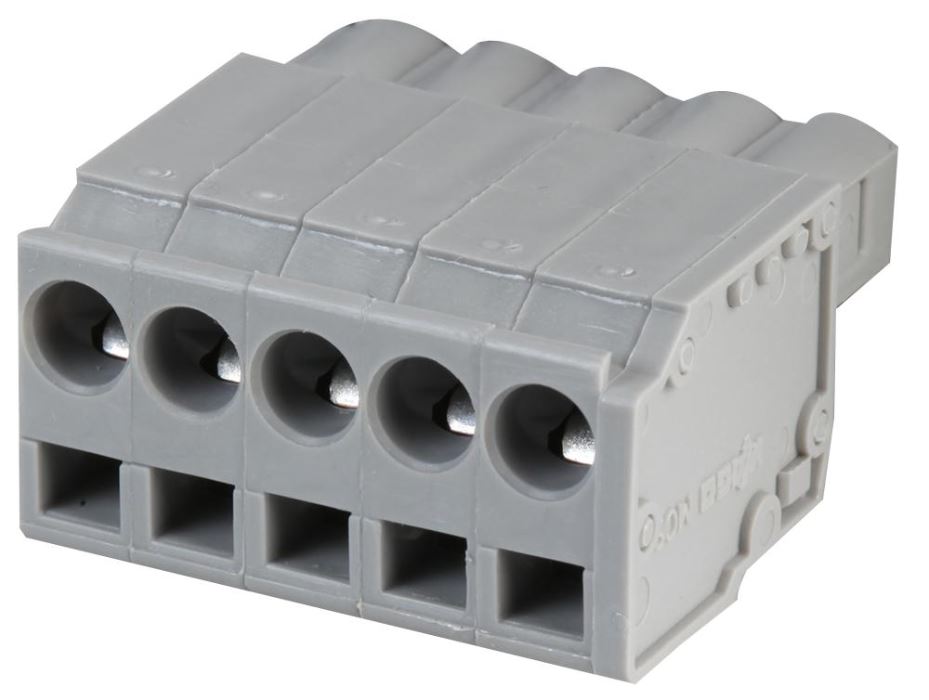

WAGO Pluggable Terminal Socket Connector, 5-Way, 5mm Pitch

The WAGO Pluggable Terminal Socket Connector is a versatile and reliable solution for a wide range of electrical connections. Featuring the innovative CAGE CLAMP® technology, it ensures secure and maintenance-free connections for all conductor types, making it suitable for both 'wire-to-wire' and 'board-to-wire' applications.

With vertical and horizontal CAGE CLAMP® actuation, this connector allows for easy cable pre-assembly and on-unit wiring, significantly reducing installation time. The integrated test ports facilitate simple and efficient testing without the need for disassembly, ensuring continuous workflow.

This connector is designed with 2 locking latches and 3 coding fingers, providing a secure and error-proof connection. Its robust construction is ideal for industrial environments, offering high reliability under demanding conditions.

Specifications

• Pitch Spacing: 5mm
• Number of Positions: 5-way
• Wire Size (AWG): 28AWG to 12AWG
• Conductor Area (CSA): 2.5mm²
• Wire Connection Method: Clamp
• Rated Current: 16A
• Rated Voltage: 320V
• Product Range: MCS MIDI Classic 231

This WAGO connector is a high-performance choice for professionals seeking durability, flexibility, and ease of use in their electrical installations.
