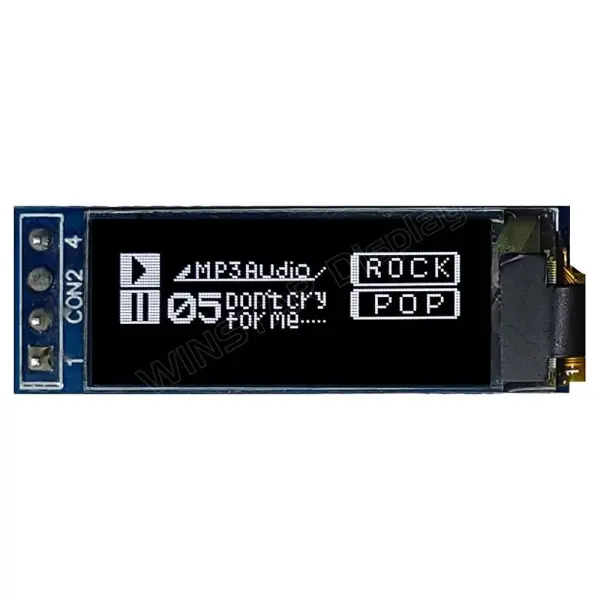

WINSTAR OLED Graphic Display Module, 3V, Passive Matrix - White 128 x 32

The WINSTAR OLED Graphic Display Module is a compact and highly efficient passive matrix display, designed for applications requiring sharp graphics and low power consumption. Its 3V logic voltage makes it ideal for portable, battery-powered devices where energy efficiency is paramount. The module features a crisp white-on-black display, providing excellent contrast and readability even in varied lighting conditions.

Built using Chip-On-Glass (COG) construction, the module is robust and reliable, with a slim profile that saves valuable space in your design. It is controlled via the popular I2C interface, simplifying integration and reducing the number of GPIO pins required from your microcontroller. The onboard SSD1306 driver IC handles all the complex display driving, allowing you to focus on your application's core functionality.

This display is engineered for resilience across a wide temperature range, ensuring stable operation in demanding environments from industrial controls to outdoor instrumentation. Its high resolution and precise pixel control make it perfect for displaying custom icons, logos, status indicators, and detailed graphical user interfaces.

Key Features & Specifications

• Display Technology: High-contrast Organic Light-Emitting Diode (OLED)
• Display Mode: Passive Matrix
• Drive Duty: 1/64 Duty
• Controller IC: SSD1306
• Interface: I2C (simple two-wire communication)
• Logic Voltage: 3V to 3.3V
• Operating Temperature: -40°C to +80°C
• Construction: Chip-On-Glass (COG) for durability
• Display Colour: White
• Display Appearance: White on Black

With its combination of low voltage operation, a standard communication protocol, and a wide operating temperature range, the WINSTAR OLED module is a versatile and dependable choice for innovators and engineers developing the next wave of

Variant Details

• Size: 128 x 32
