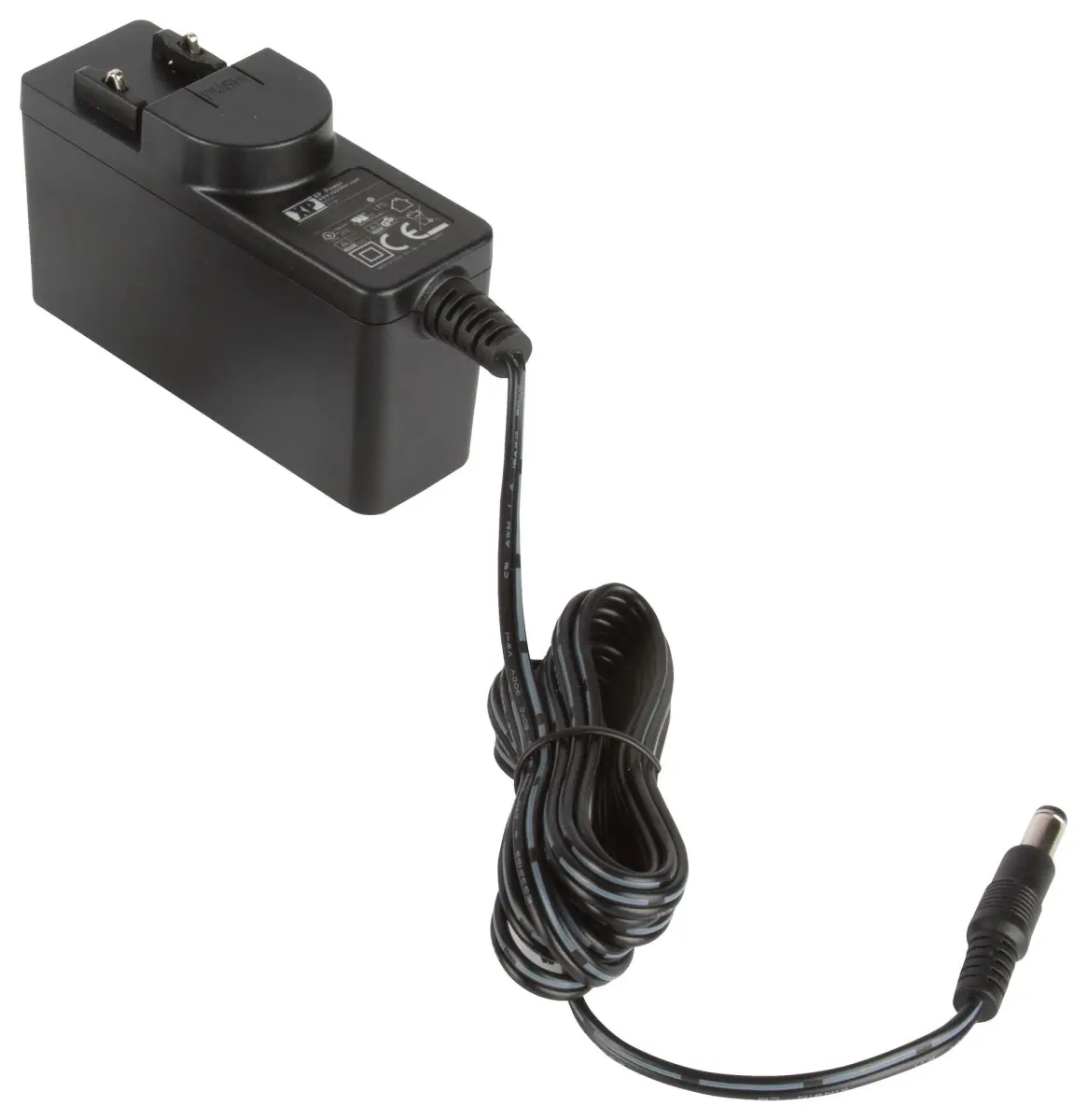

XP POWER - AC/DC Interchangeable Plug Top Power Supply, 2.5mm Plug - 12V 2A 24W

The XP POWER ACM36 series is a versatile and highly efficient plug top AC-DC power supply, designed to meet rigorous standards for both industrial (ITE) and medical applications. It features dual medical safety approvals (2 x MOPP), making it a reliable choice for sensitive equipment where patient safety is paramount. Complying with the latest Energy Efficiency Level VI standards, this adapter delivers high active mode efficiency and exceptionally low no-load power consumption, helping to reduce energy costs and environmental impact.

Engineered for cost-sensitive applications without compromising on performance, this power supply maintains industry-leading reliability. Its comprehensive suite of global safety approvals includes UL60950-1, UL62368-1, ANSI/AAMI ES 60601-1, EN60950-1, EN62368-1, EN60601-1, IEC60950-1, IEC62368-1, IEC60601-1, CSA C22.2 No. 60601, and AU/NZ 60950.1, ensuring compliance for international markets.

Key Features & Performance

• High Efficiency: Offers 88.6% efficiency, minimising energy loss as heat.
• Stable Output: Provides precise voltage regulation with a total regulation of ±5%, ensuring consistent power delivery to your device.
• Robust Protection: Incorporates continuous, trip, and restart (hiccup mode) short circuit protection with auto-recovery, safeguarding both the supply and connected equipment.
• Wide Operating Range: Functions with an input voltage from 90 to 264V AC and a frequency of 47 to 63Hz, suitable for global use.
• Thermal Management: Rated for operation from 0 to 60°C, with a derating curve for optimal performance at higher temperatures.
• Flexible Installation: Features interchangeable mains connectors (plug sold separately), allowing for easy regional adaptation.

With a compact form factor, this single-output, fixed-voltage supply is an ideal power solution for a wide array of professional and medical devices

Variant Details

• Size: 12V 2A 24W
