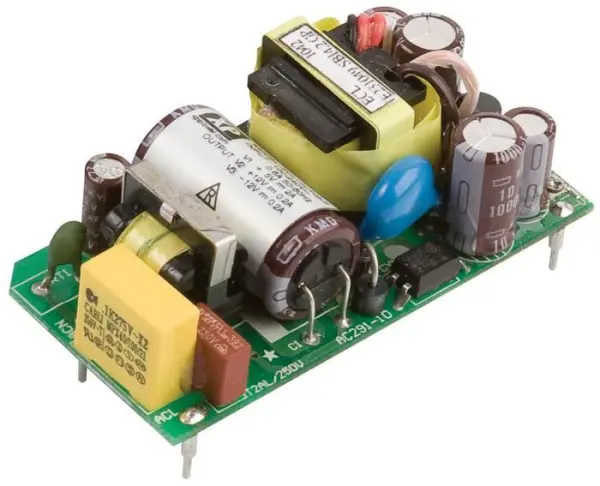

XP Power - AC/DC Open Frame PCB Mount Power Supply - 24V 0.55A 10W

The XP Power AC/DC Open Frame PCB Mount Power Supply is an ultra-compact and highly efficient solution for a wide range of ITE (Information Technology Equipment) applications. With its open frame PCB chassis mount design, this power supply is engineered for seamless integration into space-constrained systems, delivering reliable and consistent power in a minimal footprint.

Designed for versatility, this power supply series supports single, dual, or triple output configurations, making it adaptable to various system architectures. It offers peak load capability, ensuring stable performance even during sudden demand surges, and features Class II construction for enhanced safety and simplified installation without the need for a ground connection.

Energy efficiency is a core focus, with less than 0.3W no load input power, helping systems meet modern energy-saving standards and reduce standby power consumption. The power supply operates over a wide universal input range of 85V AC to 264V AC, making it suitable for global use. Outputs can be adjustable or fixed for greater design flexibility.

Key Features:

• Ultra-compact open frame PCB chassis mount form factor
• Single, dual, or triple output options
• Peak load capability for demanding applications
• Class II construction (no ground required)
• Extremely low no-load power consumption (<0.3W)

This power supply is ideal for designers and manufacturers seeking a space-saving, high-efficiency power solution for a wide array of electronic applications.

Variant Details

• Size: 24V 0.55A 10W
