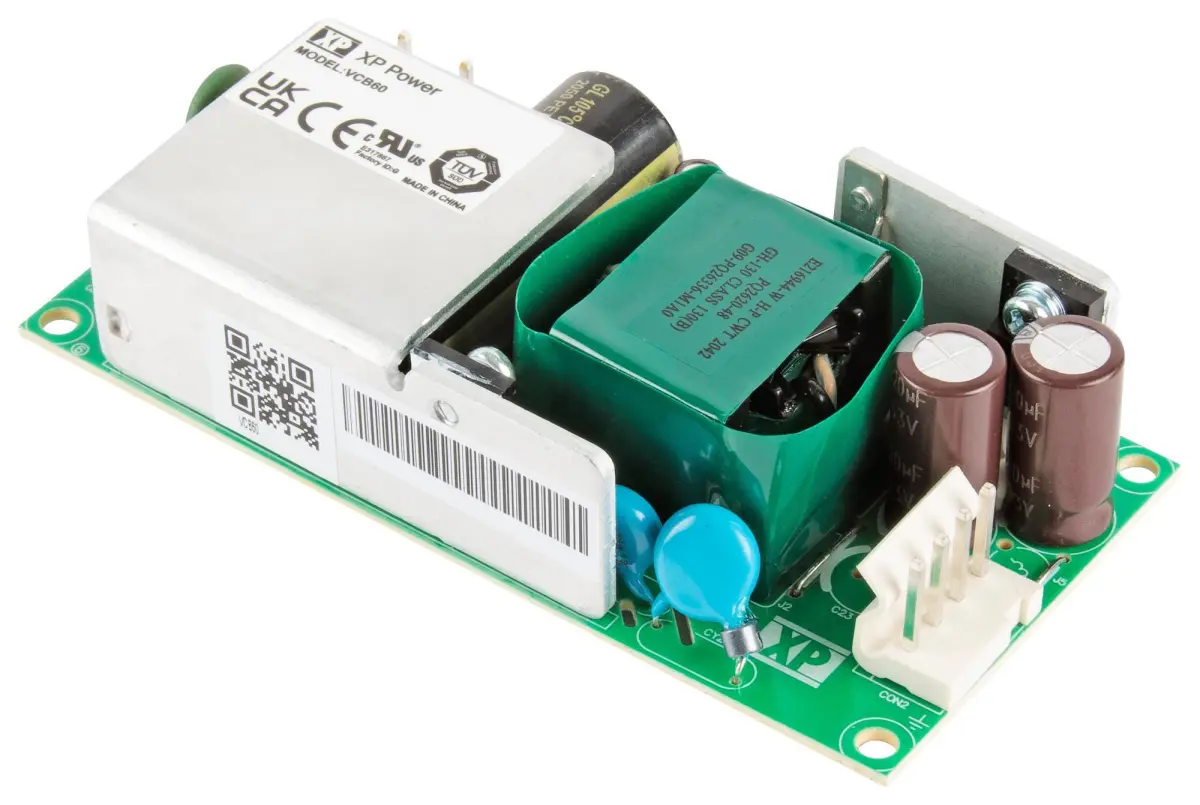

XP POWER - AC/DC Open Frame Power Supply, 60W - 12V 5A

The XP POWER VCB60 Series is a versatile, cost-effective open-frame AC-DC power supply designed to deliver reliable 60W of power for a wide array of applications. Engineered for straightforward integration, these units are convection-cooled and feature a compact 4-inch by 2-inch footprint with a low 1.01-inch profile, making them an ideal choice for space-constrained environments where efficient thermal management is crucial.

This series boasts an impressive array of international safety and EMC approvals, simplifying global deployment. It complies with key standards including EN55024, EN55035, and EN61000-4 for EMC immunity, as well as EN55032, EN55014, and EN61000-3 for emissions. The comprehensive approval set, which also covers IEC60950, IEC62368, and IEC60355, ensures the power supply meets stringent noise requirements without the need for additional external filtering, making it suitable for IT equipment, industrial electronics, and domestic settings.

Built for durability and protection, the unit incorporates safeguards against short circuits, overvoltage, and overload conditions. It operates reliably across a broad input voltage range of 90V AC to 305V AC and is approved for Overvoltage Category III, which facilitates safer installation within building wiring systems. With a high efficiency rating of 90%, waste heat is minimised, contributing to stable operation and longevity.

The power supply delivers consistent performance within an operating temperature range of -10°C to +60°C, capable of handling full load up to +50°C. Its switching frequency adjusts dynamically with the load, ranging from 5 kHz to 75 kHz. As a single-output, fixed-voltage unit, it provides a stable DC power source that is perfectly suited for powering modern devices in the Internet of Things (IoT), robotics, and other cost-sensitive electronic applications.

Variant Details

• Size: 12V 5A
