13.8V 2A Metal Boxed Wall Mount Access Control Power Supply
Reliable 13.8V 2A metal power supply with battery backup for access control systems. Hardwired, wall-mount, tamper-resistant.

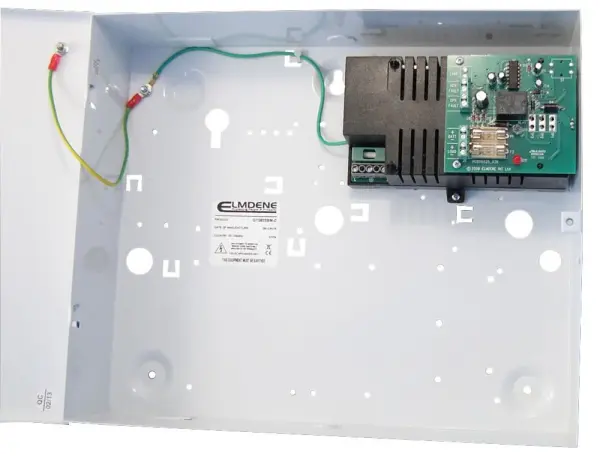

This 13.8V 2A Metal Boxed Wall Mount Access Control Power Supply is a robust and reliable power solution designed for access control and ITE applications. Housed in a durable metal enclosure, it provides a fixed 13.8VDC output with a maximum current of 2A, delivering up to 27.6VA of power to your connected devices.
Featuring cost-effective switch mode technology, this power supply ensures efficient operation while maintaining a compact footprint. The unit includes front and rear enclosure tampers for enhanced security, and a mains fail relay output to signal any loss of AC power. Battery monitoring and volt-free fault outputs keep you informed of system status, while the electronic overload and mains transient protection safeguards your equipment.
When the mains supply fails, the power supply seamlessly switches to a connected 12V/7Ah standby battery (not included) to provide uninterrupted backup power. It delivers the full rated current to the load plus 0.5A for battery charging, ensuring your system stays operational during outages. An LED fault indication provides a clear visual alert for any issues.
The supply is hardwired for a permanent, secure connection and accepts a wide input voltage range from 90VAC to 264VAC, making it suitable for various installations. PCB standoffs are supplied to accommodate common A/C boards, simplifying installation.
Specifications
- Output Voltage: 13.8VDC
- Output Current: 2A
- Maximum Output Power: 27.6VA
- Number of Outputs: 1
- Input Voltage: 90VAC to 264VAC
- Power Supply Output Type: Fixed
- Plug Type: Hardwired
- Enclosure: Metal boxed, wall mount
- Battery Backup: Charge and standby support for 12V/7Ah battery
- Weight: 3294 grams
- Dimensions: 43mm (H) x 33mm (W) x 15mm (D)
- Protection: Electronic overload, mains transient protection
- Tamper Protection: Front,
