555 Astable Circuit Project Kit

The 555 Astable Circuit Project Kit is a straightforward electronics project that introduces the iconic 555 timer IC in one of its most common configurations: the astable oscillator. This kit is perfect for beginners, classroom use, and soldering practice, offering a hands-on introduction to a component that has been a staple of electronic circuits for over 40 years.

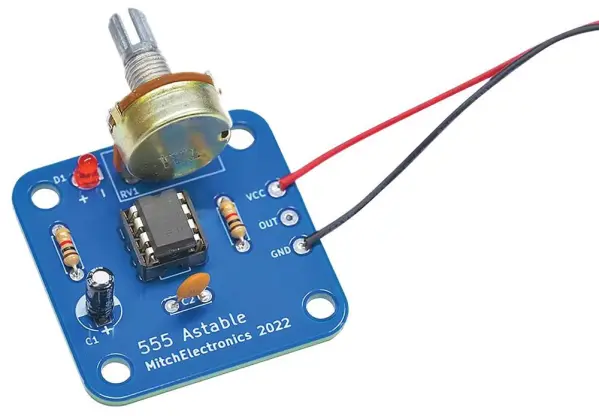

The kit includes everything needed to build a functioning astable circuit, including a potentiometer for frequency variation, an LED indicator for visual feedback, and external contact pads for connecting to other circuits. Supplied in kit form, the project can be assembled in under an hour, making it ideal for educational settings and hobbyists alike.

Key Features

• Introduces the 555 timer IC in an astable oscillator circuit
• Includes potentiometer for frequency adjustment
• LED indicator for circuit status
• External contact pads for integration with other circuits
• Assembly time: under one hour
• Powered by a 9V PP3 battery (not included)
• PCB dimensions: 32 x 30 mm

Whether you are learning about timers, practicing your soldering skills, or teaching electronics in a classroom, this kit provides a practical and engaging way to understand a foundational circuit.
