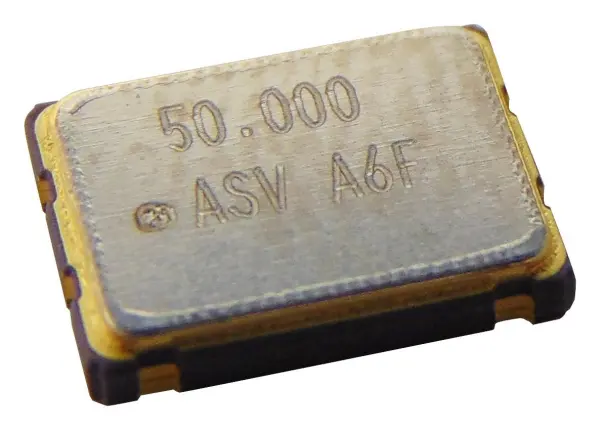

ABRACON ASV 50MHz SMD Oscillator, 7x5mm, 20ppm, 3.3V

The ABRACON ASV-50.000MHZ-EJ-T is a high-performance surface-mount crystal clock oscillator designed for precision timing in modern electronic applications. Featuring a compact SMD package measuring 7 x 5.08 x 1.8mm, this HCMOS-compatible oscillator operates at a nominal frequency of 50MHz with a tight stability of ±20ppm, ensuring reliable and accurate clock signals. Its 3.3VDC supply voltage makes it ideally suited for low-power digital circuits. The device boasts excellent output drive capability and is constructed with a seam-sealed case, which assures high reliability and protection in demanding environments.

Engineered for seamless integration into automated production processes, this oscillator is suitable for standard reflow soldering profiles, facilitating efficient PCB assembly. Key performance specifications include a maximum start-up time of 5ms, a maximum period jitter of 3.2ps (one sigma RMS), and a maximum symmetry of 60%, contributing to stable and clean signal generation.

Applications

This versatile oscillator is specifically designed to provide critical clock signalling for a wide range of digital systems. Its primary applications include timing for microprocessors, PC motherboards, and graphics cards. It is also an excellent choice for portable devices, computer peripherals, and communications networking equipment where precise and stable frequency references are paramount.

Important Handling Information

Please note that this is an ESD-sensitive device. Proper electrostatic discharge precautions must be taken during handling and installation to prevent potential damage to the component.

With its robust construction, precise frequency control, and industry-standard form factor, the ABRACON ASV series oscillator delivers dependable performance for your most critical timing needs.
