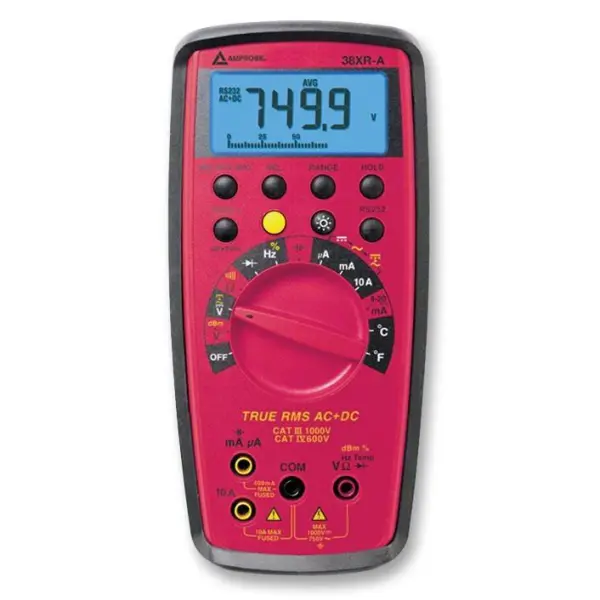

Amprobe 38XR-A True RMS Multimeter with Optical PC Interface

The Amprobe 38XR-A is a true-RMS digital multimeter designed for engineers working on industrial automation and control systems. It delivers accurate measurements with a bright blue backlight for enhanced visibility in low-light conditions. The optical PC interface allows for data transfer and analysis, making it a versatile tool for troubleshooting and maintenance tasks.

With the ability to measure up to 10 Amps AC/DC and fully safety-fused inputs, this multimeter ensures user protection. The continuity beeper aids in quick circuit testing, while functions such as min/max, average, relative, peak, and data hold capture critical readings for analysis. The auto power-off feature conserves battery life, and the separate door provides easy access to batteries and fuses.

The device features auto ranging with a 4-3/4 digit LCD, 10,000 counts, and a 41-segment analogue bar graph for clear data presentation. The display updates twice per second, and the power source is a standard 9V battery (NEDA 1604, JIS 006P, IEC 6F22). An input lead warning alerts the user to potential hazards.

Contents

Carrying case, Magne-Grip™ holder with hanging strap, users manual, test leads, and a type-K thermocouple.

Specifications

• DMM Functions: Current, Voltage, Capacitance, Frequency, Resistance, Temperature
• Number of Digits: 4.75
• DMM Response Type: True RMS
• Display Count: 10000
• Range Selection: Auto
• Voltage Measure DC Max: 1kV
• Voltage Measure AC Max: 750V
• Current Measure DC Max: 10A
• Current Measure AC Max: 10A
• Resistance Measure Max: 40Mohm

This professional multimeter is suitable for industrial maintenance, repair, test measurement, and portable device applications, offering reliability and precision.
