Antiference 4K HDMI Extender with Cat6, PoC & Audio Extraction

The Antiference 4K HDMI Extender with Cat6, PoC & Audio Extraction is a high-performance solution for transmitting ultra-high-definition video and audio signals over long distances. This slim yet powerful extender supports 4K (up to 60Hz, HDCP2.2) and 1080p signals, extending them up to 70 metres via a single Cat6 cable with Power over Cat (PoC) capability, eliminating the need for a separate power supply at the receiver end.

Key Features

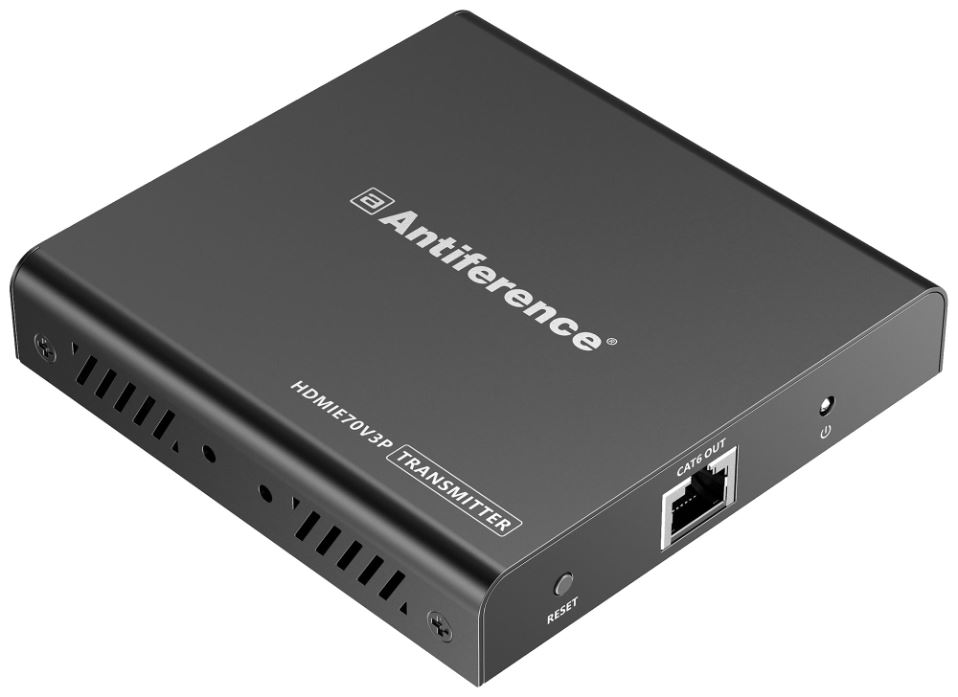

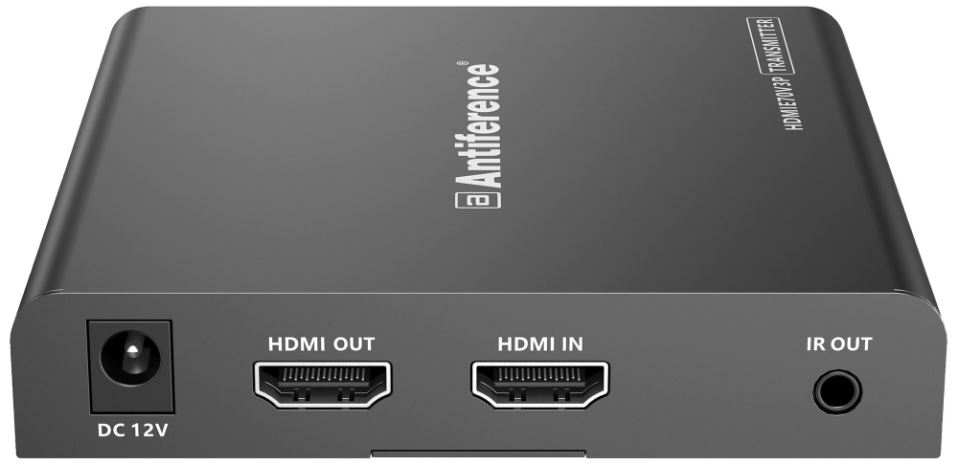

Ideal for professional and domestic use, the extender includes an HDMI loop out on the transmitter, enabling you to connect a local display while simultaneously sending the signal to a remote location. The auto-scaling function ensures compatibility between different display resolutions, allowing a 4K source to feed both a 4K display (via the loop) and a 1080p display at the remote end without manual adjustment.

Enhanced Audio Control

The extender features a dual audio extraction option, letting you output audio separately via S/PDIF (optical) or through HDMI, with a manual selector for easy switching. Supported audio formats include LPCM, DTS-HD, DTS-Audio, Dolby TrueHD 7.1, and Dolby Digital 5.1, ensuring high-fidelity sound reproduction.

Reliable & Secure Connectivity

Built-in lightning, surge, and ESD protection safeguards your equipment against power fluctuations, while one-way IR control allows seamless operation of the source device from the remote location. The compact and lightweight design (420g) makes it easy to integrate into any AV setup.

Applications

• Audio/Visual – Professional and home theatre systems
• Business – Meeting rooms, digital signage
• Education – Lecture halls, multimedia classrooms
• Public & Retail – Exhibitions, interactive displays
• Music & Entertainment – Multi-room audio/video distribution

This Antiference 4K
