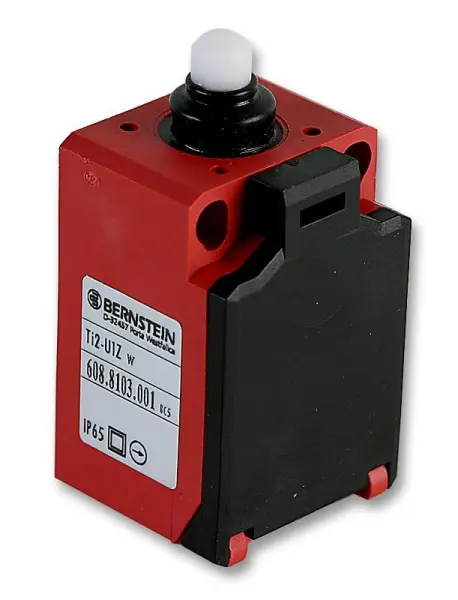

BERNSTEIN Tiny Ti2 Limit Plunger Switch, 2NC, 7N, 250V AC, 10A
- SKU
- C3-SW06777
- EAN
- 3562134152880
Reliable BERNSTEIN Tiny Ti2 plunger limit switch, 2NC, 7N force, 250V AC, 10A. IP65 rated, DIN EN 50047 mount, ideal for safety.
This item is currently out of stock...
This item is currently out of stock, but you may opt in to be notified when it is back in stock.
Need larger quantities? Need additional quantities? Get in touch and we'll arrange it for you.
- Free UK deliveryOrder by 13:58 UK time on a working day for same-day dispatch
- 30-day returnsUnused, in original packaging
- Secure checkoutCard, PayPal, Apple Pay, Google Pay
Technical Specifications
- Safety monitoring systems
- Automation and process control
- Lift (elevator) construction
- Industrial machinery guarding
- Ask Claude, ChatGPT or Perplexity to find the right tool, with our live prices and stock.
- Get a ready-made basket: one link puts everything in your basket here.
- You always pay securely here: your assistant never sees your card.
- Actuator Type: Plunger
- Contact Configuration: 2NC (Normally Closed)
- Contact Current AC Max: 10A
- Contact Voltage AC Max: 250V AC
- Operating Force Max: 7N
- Enclosure Material: UL94V-0 rated fibreglass reinforced PBT
- Lid Material: UL94V-0 rated PA 6.6
- Terminals: 4 x M3.5 screw terminals with self-lifting clamps
- Cable Entry: M16 x 1.5
- Contact Opening (Slow-Action): 2mm (per EN 81-1)
- Protection Rating: IP65
- Mounting Standard: DIN EN 50047
- Actuator Mounting: 4 x 90°
- Weight: 35 grams
- Height: 43 mm
- Width: 33 mm
- Depth: 15 mm
- IP65 Protection rating Limit Switch Actuator: Plunger
- Product Range: Tiny Ti2 Series
- SVHC: No SVHC (23-Jan-2024)
