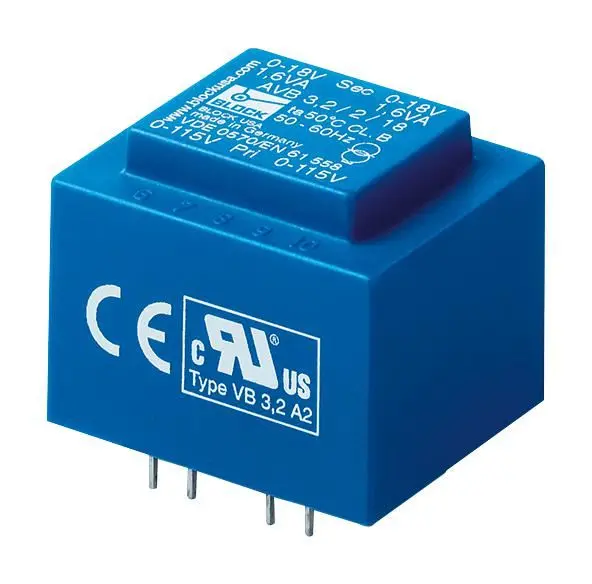

BLOCK 1.5VA Encapsulated PCB Transformer 2x 18V

The BLOCK 1.5VA Encapsulated Safety Isolating Transformer provides mains voltage adjustment and simple electrical isolation for a wide range of industrial and power management applications. Its advanced XtraDenseFill resin encapsulation delivers permanent corrosion protection, high insulation value and maximum electrical reliability, even in demanding environments.

This PCB transformer is inherently short-circuit proof and designed for high ambient temperatures, ensuring safe and dependable operation. It features dual primary (2 x 115V) and dual secondary (2 x 18V) windings, offering flexible series or parallel connection to suit your circuit requirements. The through-hole mounting and compact size make it easy to integrate into your PCB designs.

Key Features

• Inherently short-circuit proof
• Dual input voltage (2 x 115V) for series or parallel connection
• Dual output voltage (2 x 18V) for series or parallel connection
• Self-extinguishing potting and hood material for enhanced safety
• Minimum size at high output, ideal for space-constrained designs

Specifications

• Transformer Type: Encapsulated Safety Isolating
• Power Rating: 1.5VA
• Primary Voltages: 2 x 115V
• Secondary Voltages: 2 x 18V
• Frequency Range: 50Hz / 60Hz
• Winding Type: Dual Primary, Dual Secondary
• Current Rating: 41mA
• Transformer Mounting: Through Hole
• Product Range: AVB Series

With its rugged construction, safety certifications and high thermal performance, this transformer is the reliable choice for your power supply and isolation needs.
