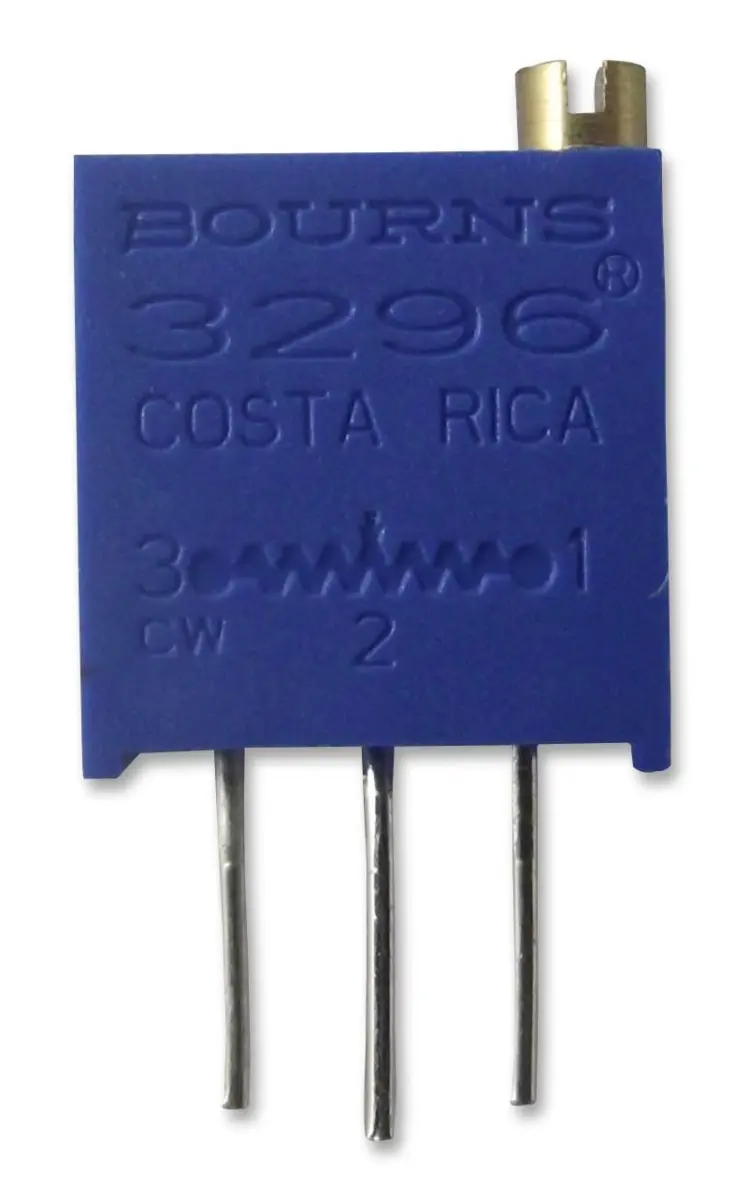

BOURNS 25-Turn 10K Top Adjust Trimmer Potentiometer
BOURNS 25-turn 10K trimming potentiometer, top adjust, through hole mount. 0.5W power rating, 3/8 inch square cermet element.
The BOURNS 25-Turn 10K Top Adjust Trimmer Potentiometer is a high-precision multiturn Trimpot® trimming potentiometer designed to perform a variety of circuit adjustments across all types of electronic equipment. Featuring a compact 3/8 inch square design, this through-hole mounting potentiometer utilises a top adjustment lead screw, ensuring highly accurate and stable calibration for your circuits.
With a resistance value of 10Kohm and a ±10% resistance tolerance, this component delivers consistent performance. The cermet element material provides excellent stability, while the 100% tin-plated terminals and chevron seal design offer robust durability and an impressive dielectric strength of 900VAC at sea level.
This versatile trimmer is rated for a power of 0.5W (500mW) and operates reliably across a wide temperature range from -55°C to +125°C, featuring a temperature coefficient of ±100ppm/°C. It guarantees a rotational life of 200 cycles across its 25 turns, making it a durable choice for demanding applications. The product measures 43 mm in height, 33 mm in width, and 15 mm in depth, with a lightweight profile of just 0.86 grams.
