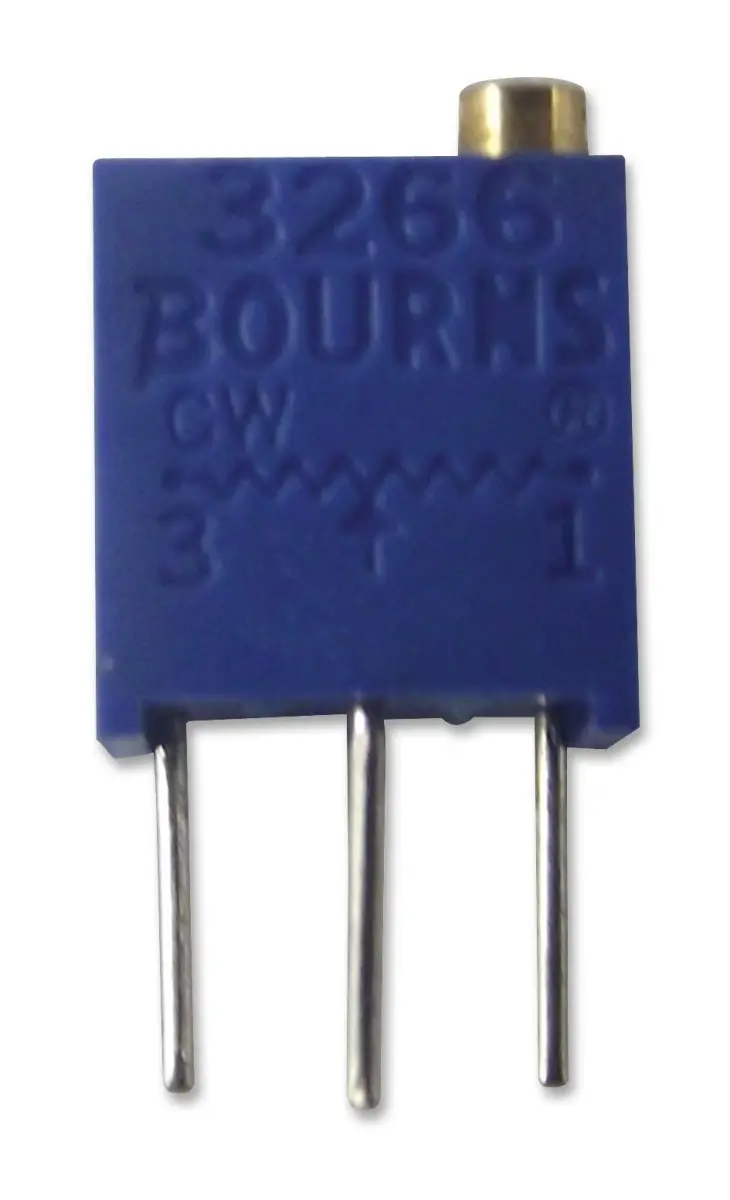

BOURNS 3266 Series 12-Turn Trimming Potentiometer 200K Ohm
BOURNS 3266 series 200K Ohm 12-turn cermet trimming potentiometer. Through hole, top adjust, IP65 rated. Ideal for precision circuit adjustments.
The BOURNS 3266 Series Trimpot is a high-precision cermet through-hole trimming potentiometer designed for reliable performance in a wide range of electronic equipment. Featuring a multi-turn mechanism, this potentiometer allows for exceptionally fine circuit adjustments, making it suitable for applications requiring precise calibration.
Built for durability and accuracy, the device offers a 12-turn adjustment with a rotational life of 200 cycles. Its robust design includes an IP65 rated seal, providing excellent protection against dust and water ingress. The 1/4 inch square form factor accommodates both side and top adjustments via an integrated lead screw, while built-in standoffs facilitate thorough printed circuit board cleaning during the manufacturing process.
Key Specifications
- Track Resistance: 200k Ohm
- Element Material: Cermet
- Adjustment Type: Top Adjust
- Mounting Style: Through Hole
- Power Rating: 0.25W (250mW)
- Resistance Tolerance: ±10%
- Temperature Coefficient: ±100ppm/°C
- Operating Temperature Range: -55°C to +150°C
Ideal for industrial and commercial electronics, this trimming potentiometer delivers consistent and accurate performance where fine-tuning is essential.
