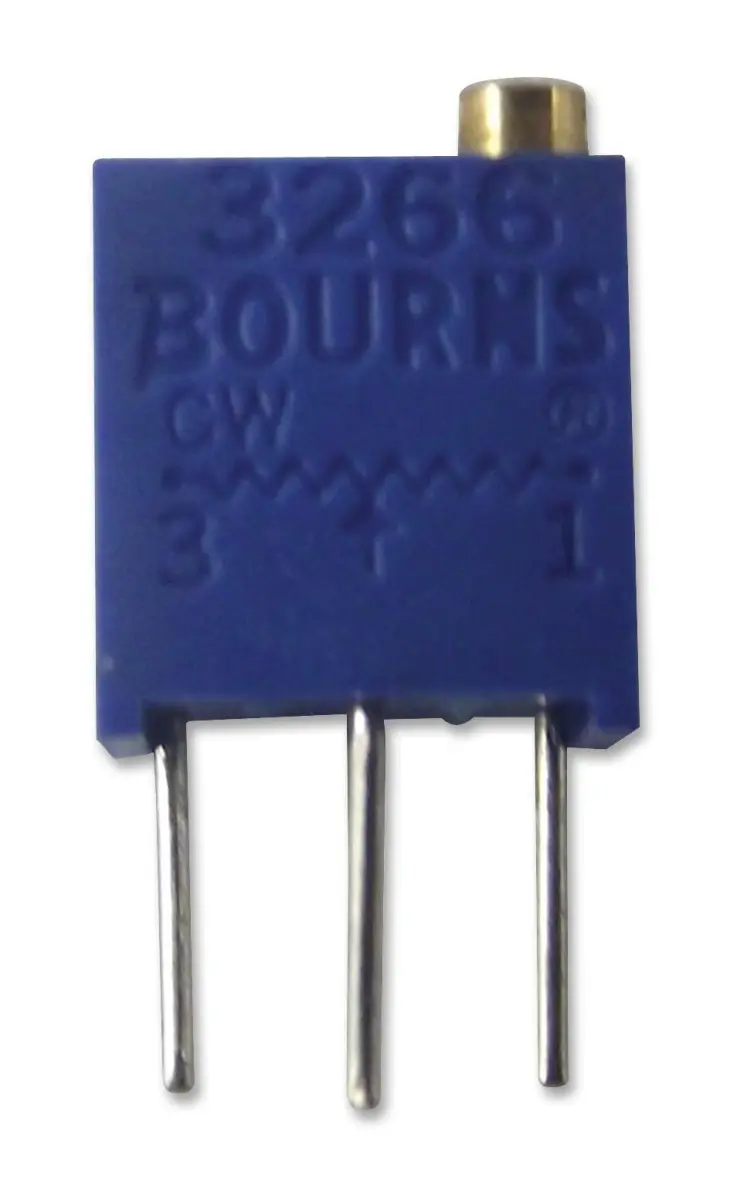

Bourns 3266 Series 100kΩ Multi-Turn Trimmer Potentiometer

The Bourns 3266 Series trimming potentiometer is a high-quality, cermet, multi-turn component designed for precise circuit adjustment in a wide range of electronic equipment. This through-hole mount trimpot offers exceptional reliability and stability, making it an ideal choice for calibration and fine-tuning applications where accuracy is paramount.

Featuring a 1/4-inch square profile, the potentiometer provides 12 full turns of adjustment, allowing for extremely fine control over resistance values. This multi-turn capability is perfect for applications requiring precise setting, such as measuring linear distance, angle, or rotation in production and test equipment. The side or top adjustment is achieved via a lead screw mechanism.

Built for durability in demanding environments, the unit boasts an IP65 sealing rating, offering protection against dust and low-pressure water jets. It has a rotational life of 200 cycles, ensuring long-term performance. The inclusion of standoffs beneath the body allows for thorough cleaning of the printed circuit board after soldering, preventing flux contamination.

This specific model has a track resistance of 100 kilo-ohms (kΩ) with a tolerance of ±10%. It operates reliably across a wide temperature range from -55°C to +125°C, with a temperature coefficient of ±100ppm/°C. The power rating is 0.25 watts (250mW).

Key Features & Specifications:

• Series: 3266
• Element Material: Cermet
• Adjustment Type: Top Adjust
• Mounting: Through Hole
• Turns: 12
• Sealing: IP65 Rated
• Resistance Value: 100kΩ
• Resistance Tolerance: ±10%
• Power Rating: 0.25W (250mW)
• Operating Temperature: -55°C to +125°C
• Temperature Coefficient: ±100ppm/°C
• Rotational Life: 200 cycles
• Dimensions: 33mm (W) x 43mm (H) x 15mm (D)
• Weight: 0.43 grams
