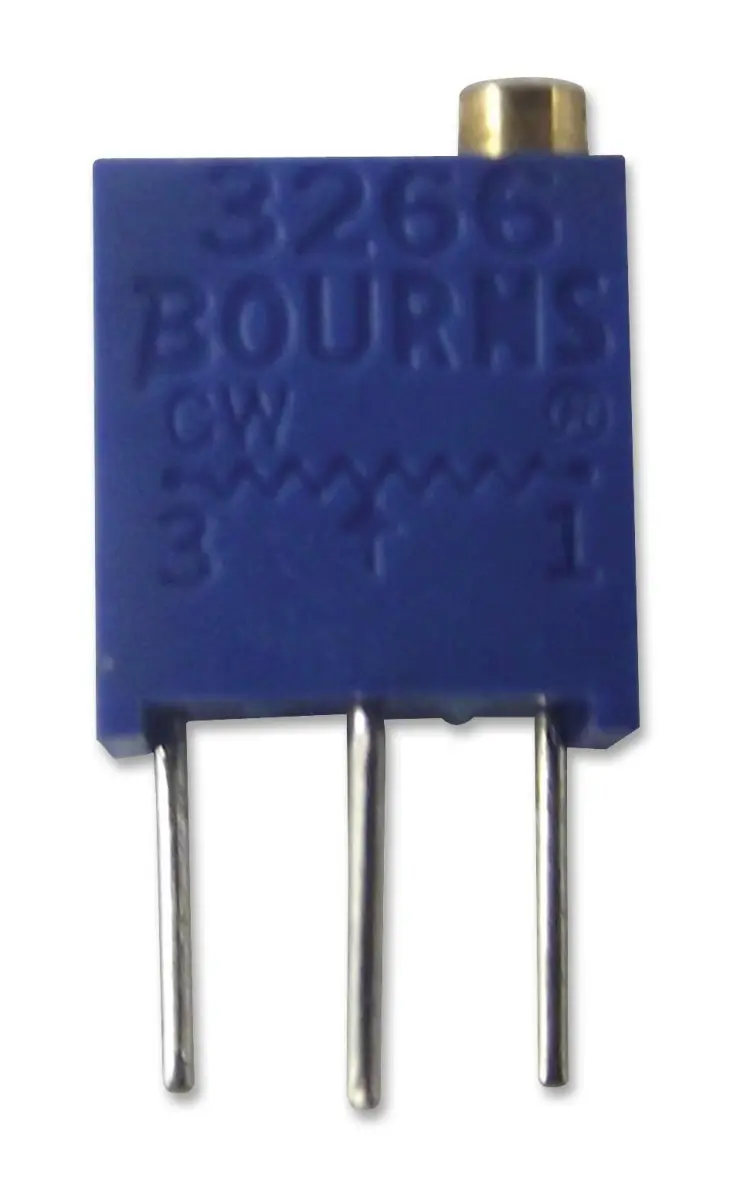

Bourns 3266 Trimmer Potentiometer 10kΩ (12 Turn)
Precision 10kΩ cermet trimmer, 12-turn, top adjust, through hole. IP65 rated, 0.25W, -55°C to +125°C. Ideal for circuit adjustments.
The Bourns 3266 Trimmer Potentiometer is a precision, multi-turn cermet component designed for fine circuit adjustments in a wide range of electronic equipment. This 1/4-inch square trimmer offers reliable performance with a rotational life of 200 cycles, ensuring durable and consistent operation in demanding applications.
Featuring a 12-turn adjustment mechanism and a top access lead screw, this potentiometer allows for accurate and stable resistance setting. The cermet element material provides excellent stability and low noise, making it suitable for measurement and calibration tasks. The component is rated to IP65, offering protection against dust and water ingress, enhancing its longevity in various environments.
This through-hole mounted trimmer is designed for easy integration into PCBs, with standoffs that permit thorough cleaning after soldering. With a resistance of 10kΩ and a tolerance of ±10%, it delivers precise control for your electronic projects. The device operates over a wide temperature range, from -55°C to +125°C, and has a power rating of 0.25W, ensuring reliable performance under varying conditions.
Key Features
- Multi-turn (12-turn) adjustment for precise tuning
- Cermet element for high stability and low noise
- IP65 rated sealing for environmental protection
- Top adjustment with lead screw for easy access
- Standoffs allow thorough PC board cleaning
- Wide operating temperature range for versatile use
Specifications
- Resistance Value: 10kΩ
- Tolerance: ±10%
- Temperature Coefficient: ±100ppm/°C
- Number of Turns: 12
- Power Rating: 0.25W
- Operating Temperature: -55°C to +125°C
