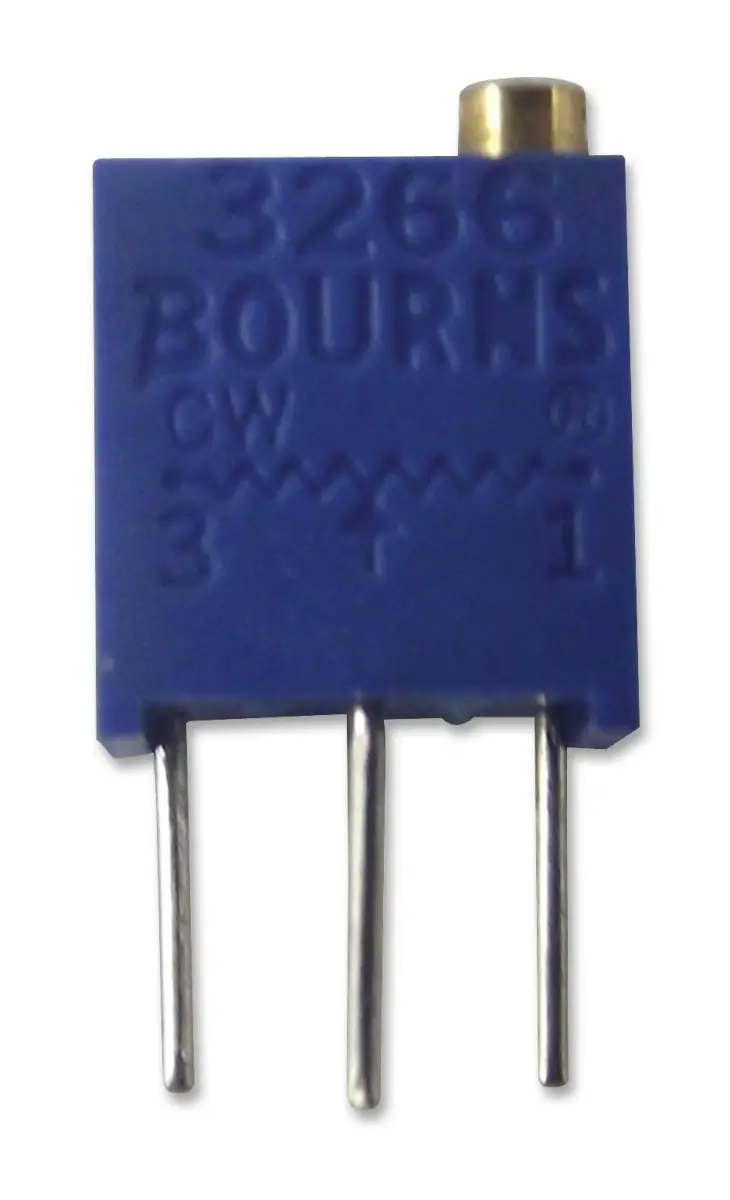

Bourns 3266 Trimmer Potentiometer, Multi Turn, 2kOhm, Through Hole

This Bourns Trimpot 3266 series is a cermet, through hole trimming potentiometer designed for precise circuit adjustments in a wide range of electronic equipment. With 12 turns and a rotational life of 200 cycles, it offers fine, repeatable tuning for applications such as measuring linear distance, angle, or rotation in production equipment.

The trimmer is available with side or top adjustment and features a lead screw for accurate setting. Its IP65-rated sealing protects against dust and moisture, ensuring reliable performance in demanding environments. The component is housed in a 1/4 inch square package and includes standoffs that allow thorough cleaning of the PC board after soldering.

Key Specifications

• Resistance Value: 2kΩ (2k ohm)
• Tolerance: ±10%
• Power Rating: 0.25W (250mW)
• Temperature Coefficient: ±100ppm/°C
• Operating Temperature Range: -55°C to +125°C
• Number of Turns: 12 turns
• Mounting Type: Through hole
• Element Material: Cermet
• Product Range: 3266 series

This trimmer potentiometer is a reliable choice for engineers and hobbyists needing a compact, multi-turn adjustment solution. Its through hole design ensures easy integration into standard PCB layouts, while the cermet element provides stable performance over time and temperature variations.
