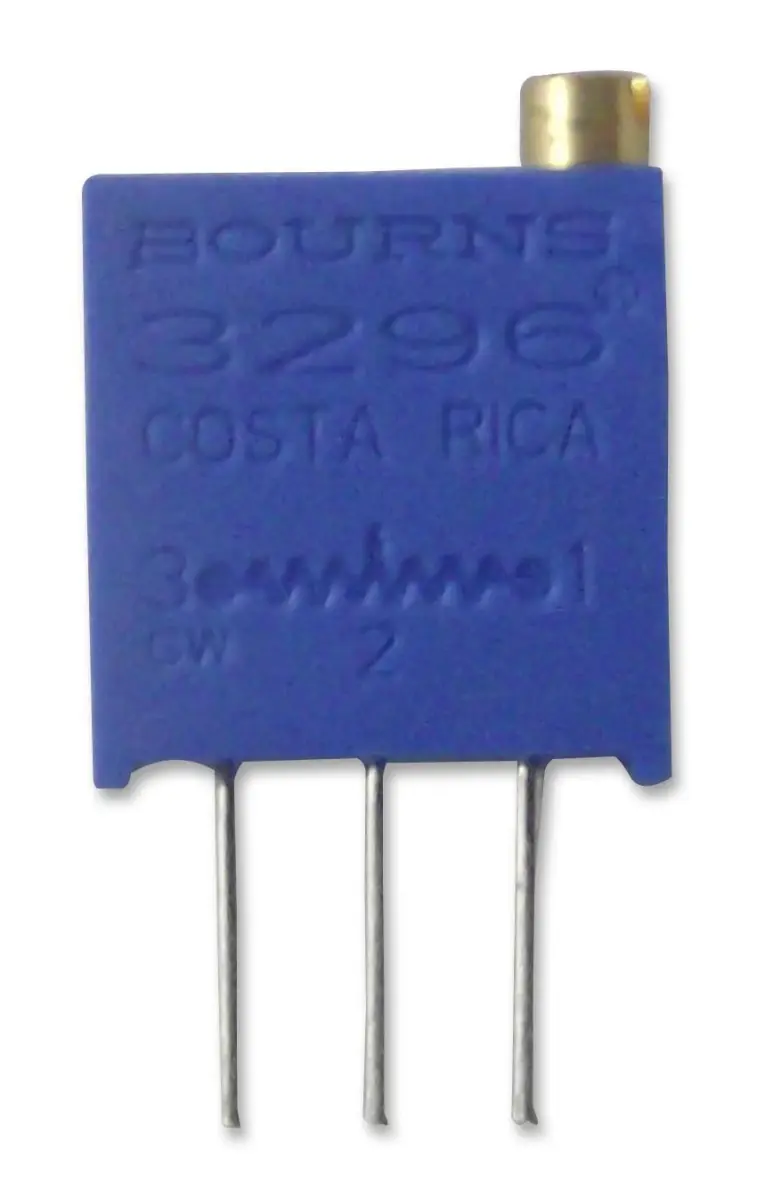

BOURNS 3296 Series 25 Turn 100R Trimmer Potentiometer
BOURNS 3296 series 25-turn 100 ohm cermet trimmer potentiometer. Through hole mount, top adjust, IP65 rated.
The BOURNS 3296 Series Trimpot is a high-precision cermet through-hole trimming potentiometer designed for reliable performance. As a multi-turn device, it performs a variety of accurate circuit adjustments across all types of electronic equipment.
This 3/8 inch square trimmer features side or top adjustment via a lead screw, complete with a chevron seal design that provides an IP65 rated seal against environmental factors. With a 25-turn adjustment capability and a rotational life of 200 cycles, it is engineered for dependable operation. Typical applications include measuring linear distance, angle, or rotation in production equipment, making it a versatile choice for industrial and commercial electronics.
Key Specifications
- Track Resistance: 100 ohm
- Resistance Tolerance: ±10%
- Temperature Coefficient: ±100ppm/°C
- Power Rating: 0.5W (500mW)
- Operating Temperature Range: -55°C to +150°C
Measuring 43 mm in height, 33 mm in width, and 15 mm in depth, with a lightweight design of just 0.86 grams, this SIP package component is suitable for compact through-hole mounting.
