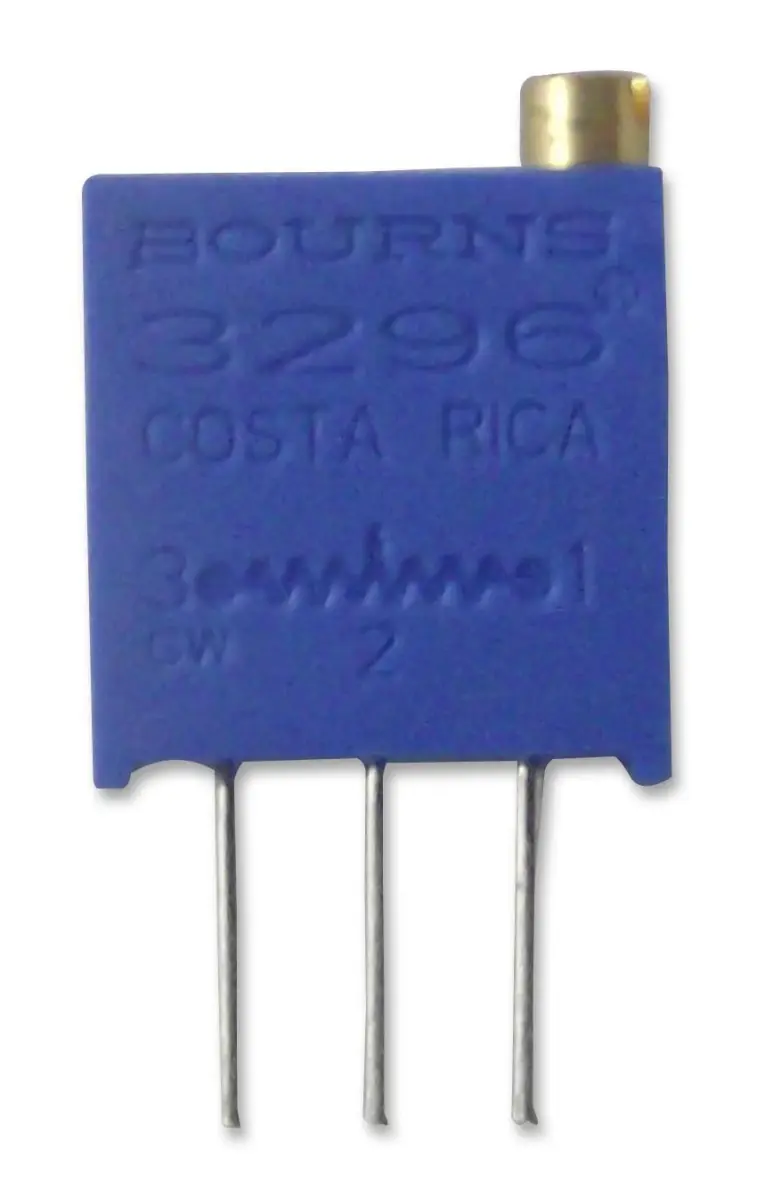

Bourns 3296 2kΩ Multi Turn Cermet Trimmer, Top Adjust, 25 Turns

The Bourns Trimpot 3296 series is a professional range of cermet, through-hole trimming potentiometers designed for precise and reliable circuit adjustments across various electronic equipment. This particular model offers a 2kΩ resistance with a ±10% tolerance, ensuring accurate performance for your tuning needs.

Featuring a multi-turn design with 25 turns, this trimmer delivers fine adjustment capability, ideal for applications requiring precise calibration such as measuring linear distance, angle, or rotation in production equipment. The top adjustment mechanism with a lead screw provides easy access and control during setup.

Engineered for durability, the trimmer boasts an IP65-rated seal with a chevron seal design, protecting against dust and water ingress, and ensuring a rotational life of 200 cycles. Its cermet element offers excellent stability and a low temperature coefficient of ±100ppm/°C, while operating seamlessly from -55°C to +125°C, making it suitable for demanding environments.

With a 3/8 inch square footprint, this through-hole component is compatible with standard PCB layouts and comes in 5 terminal styles to fit various mounting requirements. The power rating of 0.5W ensures reliable performance under typical load conditions.

Specifications

• Type: Multi Turn
• Element Material: Cermet
• Adjustment Type: Top Adjust
• Track Resistance: 2kΩ
• Mounting: Through Hole
• Number of Turns: 25 Turns
• Product Range: 3296 Series
• Power Rating: 0.5W (500mW)
• Tolerance: ±10%
• Temperature Coefficient: ±100ppm/°C
• Operating Temperature: -55°C to +125°C
• Trimmer Shape/Size: 3/8 Inch Square
• Package: SIP
• Sealing: IP65 Rated
• Rotational Life: 200 Cycles
• Terminal Styles: 5 Styles
