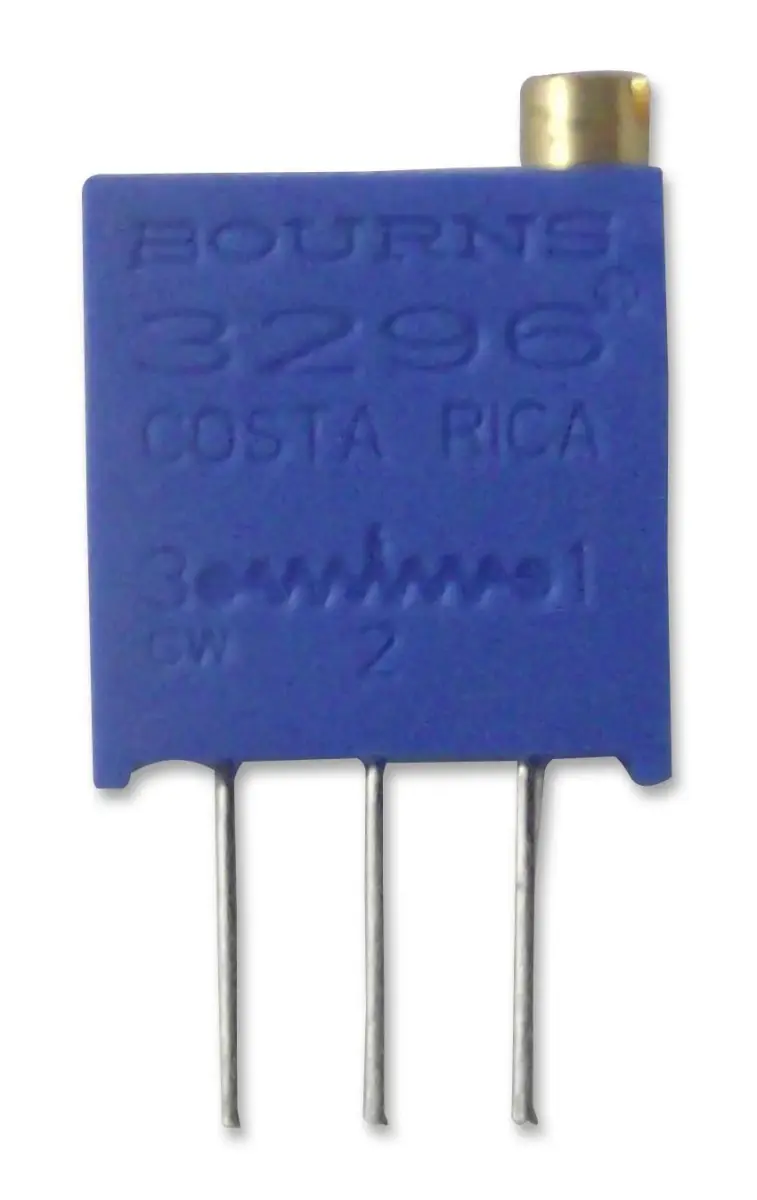

Bourns 3296 Trimmer Potentiometer 200K Ohm 25 Turn
Bourns 3296 trimmer potentiometer, 200K ohm, 25 turn, cermet, through hole. High precision for circuit adjustments.
The Bourns Trimpot 3296 series trimmers are cermet, through hole trimming potentiometers designed for a wide range of circuit adjustments in electronic equipment. These multi-turn potentiometers are ideal for fine-tuning and calibration tasks, offering precise and reliable performance in various applications.
These trimmers feature a 3/8 inch square package with side or top adjustment via a lead screw, providing flexibility in installation and adjustment. With an IP65 sealing rating, they are protected against dust and water ingress, ensuring durability in demanding environments.
Key Features
- Multi-turn design with 25 turns for precise adjustment
- Cermet element material ensures stability and long life
- Rotational life of 200 cycles
- Resistance value of 200kΩ with ±10% tolerance
- Temperature coefficient of ±100ppm/°C for consistent performance
- Operating temperature range from -55°C to +150°C
- Power rating of 0.5W
- Five terminal styles and chevron seal design
Typical Applications
These potentiometers are widely used for measuring linear distance, angle, or rotation in production equipment. They are suitable for a variety of circuit adjustments in all types of electronic equipment, including calibration and tuning circuits.
The Bourns 3296 series trimmers are a reliable choice for engineers and technicians requiring high precision and robust construction in their designs.
