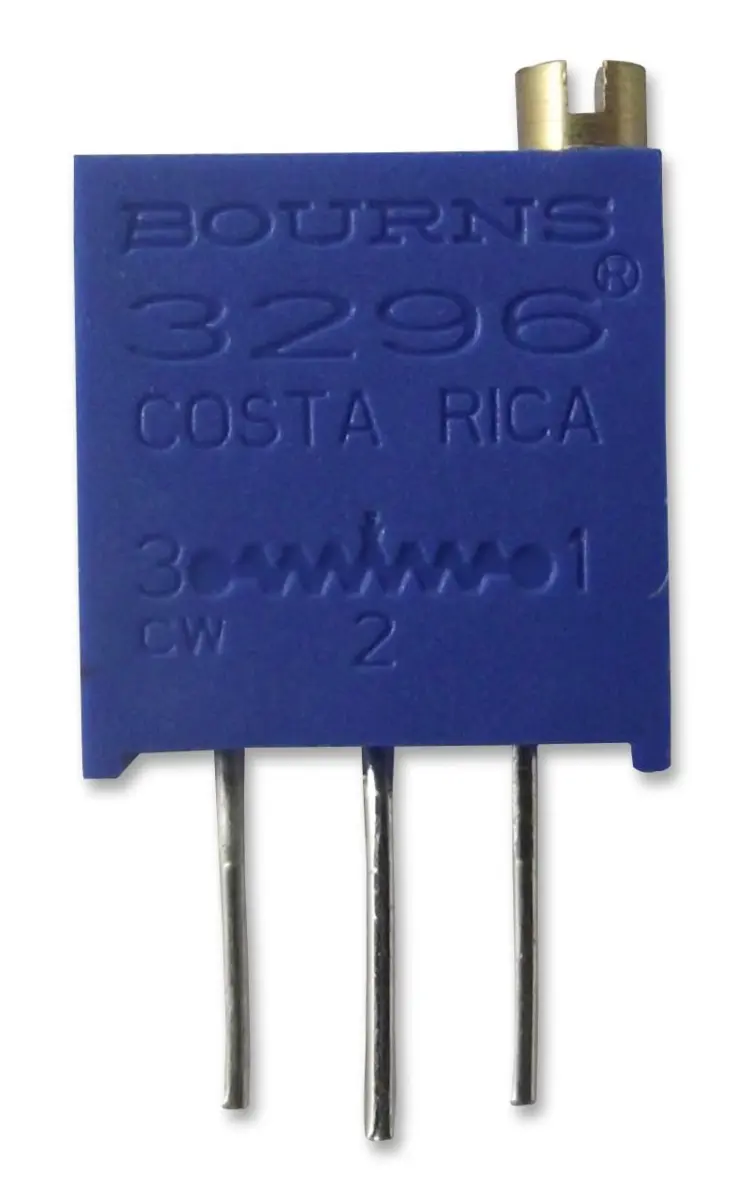

BOURNS 3296Y Trimpot 5kΩ Multiturn Cermet Trimmer
Precision 5kΩ cermet trimmer with 25 turns, top adjust, and through-hole mount. Ideal for industrial and calibration applications.
The BOURNS 3296Y-1-502LF is a precision 3/8-inch square trimming potentiometer, engineered for reliable performance in a wide range of electronic applications. This multiturn cermet trimmer offers 25 turns of fine adjustment, allowing for precise and stable circuit tuning. Its robust sealed construction and chevron seal design provide excellent protection against contaminants, making it suitable for demanding industrial environments.
With a power rating of 0.5W and a resistance tolerance of ±10%, this trimmer delivers consistent performance. The cermet element material ensures low noise and excellent stability over its operating temperature range of -55°C to +125°C. The component features a top adjustment type and solderable pins for straightforward through-hole mounting, simplifying assembly and maintenance.
This trimmer is available in 5 terminal styles to accommodate various circuit board layouts. It offers an insulation resistance of 1000MΩ, a dielectric strength of 900V, and a UL94V-0 flammability rating, ensuring high reliability and safety. The temperature coefficient of ±100ppm/°C ensures minimal resistance drift with temperature changes, making it ideal for precision applications.
Specifications
- Product Range: 3296 Series
- Trimmer Type: Multiturn
- Element Material: Cermet
- Adjustment Type: Top Adjust
- Track Resistance: 5kΩ
- Number of Turns: 25
- Power Rating: 500mW (0.5W)
- Resistance Tolerance: ±10%
- Temperature Coefficient: ±100ppm/°C
- Operating Temperature: -55°C to +125°C
- Trimmer Shape / Size: 3/8 Inch Square
- Mounting Type: Through Hole
- Insulation Resistance: 1000MΩ
- Dielectric Strength: 900V
- Flammability Rating: UL94V-0
- Seal Design: Chevron
- **S
