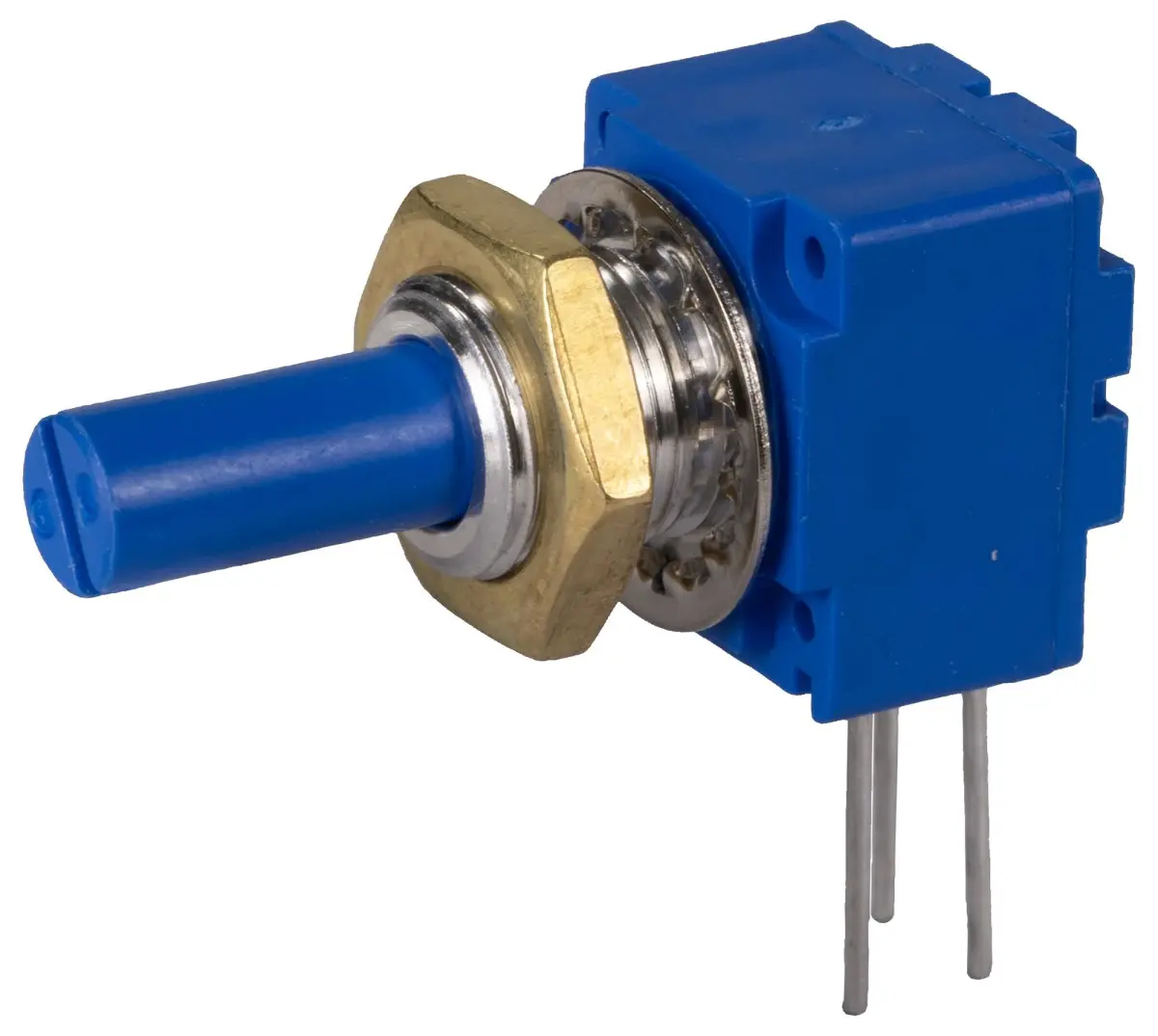

BOURNS Linear Rotary Potentiometer, 5K Ohm, 2W, Panel Mount
BOURNS 5kΩ 2W linear cermet rotary potentiometer. Panel mount, single-turn, L-pattern PC pins. IP40 rated, -40°C to 125°C.
The BOURNS Linear Rotary Potentiometer is a 1-gang panel-mounting component designed for reliable rotary adjustment. Featuring a robust cermet element with a linear taper, this single-turn potentiometer delivers consistent performance with a power rating of 2W and a track resistance of 5kΩ. It is engineered with L-pattern PC pins for secure board connectivity and a metal plain bushing for stable mounting.
This rotary potentiometer includes a single 0.305-inch R, 90°CW anti-rotating lug to maintain stability during use, ensuring consistent and accurate adjustments. With an IP40 protection rating, it offers essentially infinite theoretical resolution. The device operates effectively across a wide temperature range from -40°C to 125°C, making it suitable for demanding environmental conditions.
Key Specifications
- Track Resistance: 5kΩ
- Power Rating: 2W
- Track Taper: Linear
- Resistance Tolerance: ± 10%
- Temperature Coefficient: ± 150ppm/°C
- Adjustment Type: Rotary
- Resistor Technology: Cermet
- Terminals: L-pattern PC Pin
- Operating Temperature Range: -40°C to 125°C
Measuring 43 mm in height, 33 mm in width, and 15 mm in depth, and weighing just 12 grams, this potentiometer is compact for straightforward integration into your electronic assemblies.
