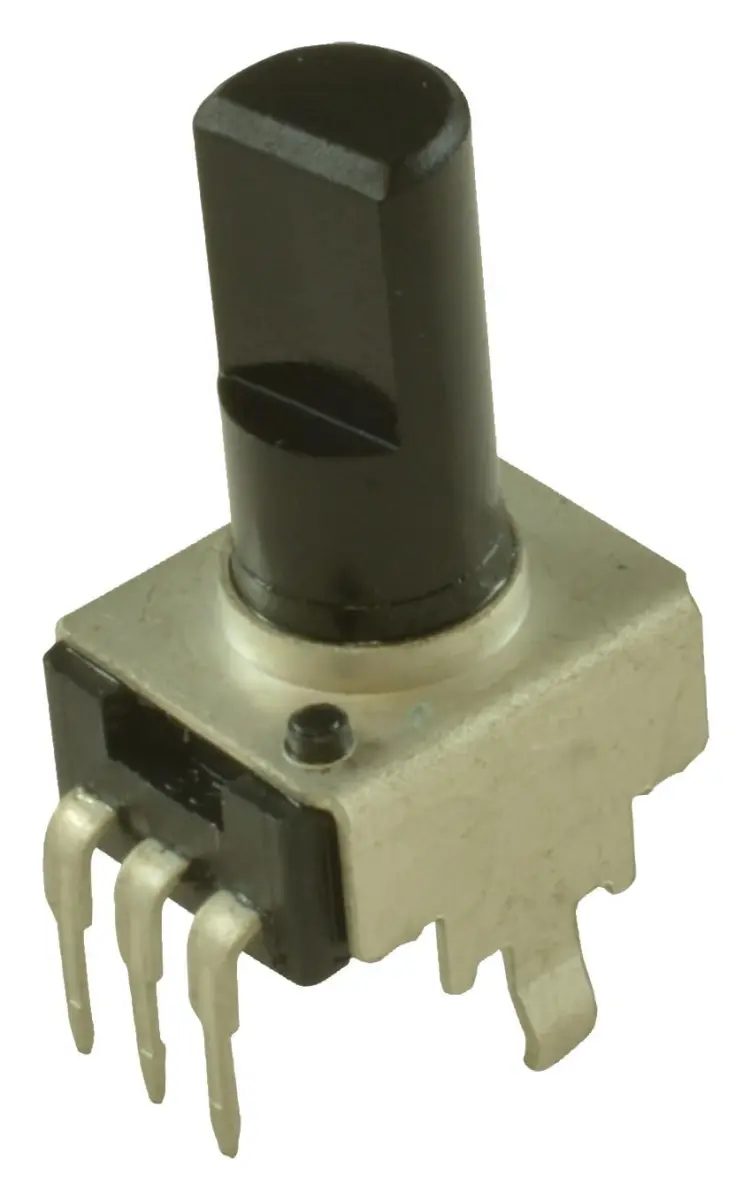

BOURNS PTV09A Series 10K Carbon Rotary Potentiometer, 1-Turn Linear, 50mW, 9mm

The BOURNS PTV09A Series Rotary Potentiometer is a compact 9mm carbon element control, ideal for a wide range of audio and commercial applications. This through-hole, single-gang potentiometer features a 10K ohm resistance with a ±20% tolerance, ensuring consistent and reliable performance in demanding signal and control circuits.

Designed for horizontal/rear mounting (bushingless) and equipped with a flatted, insulated shaft of 25mm, it offers a straightforward installation for space-constrained enclosures. The linear track taper provides predictable, uniform response across its rotation, while the centre detent offers tactile feedback for positioning and menu navigation.

With a robust carbon resistive element, this potentiometer delivers a 0.05W power rating and operates reliably across a temperature range of -10°C to +50°C, making it suitable for commercial communication gear, portable electronics, and consumer appliances.

Typical Applications

• Commercial communications equipment
• Portable electronics
• Amplifiers, mixers, drum machines, and synthesizers
• Consumer goods and commercial appliances

Technical Specifications

• Track Resistance: 10kΩ (±20%)
• Track Taper: Linear (audio taper selection available)
• Power Rating: 50mW (0.05W)
• Number of Turns: 1
• Number of Gangs: 1
• Mounting Style: Through Hole
• Terminal Type: PC Pin
• Adjustment Type: Flatted (insulated shaft)
• Shaft Length: 25mm
• Body Dimensions (excl. terminals): 43mm (H) x 33mm (W) x 15mm (D)
• Operating Temperature: -10°C to +50°C
• Weight: 0.907g

With its precise linear response and space-saving design, the BOURNS PTV09A-4225F-B103 is a versatile control component for OEM and DIY electronics projects.
