BOURNS SinglFuse SMD High Current Fuse, 1A, 63V DC
- SKU
- C3-FF04077
- EAN
- 3552974122013

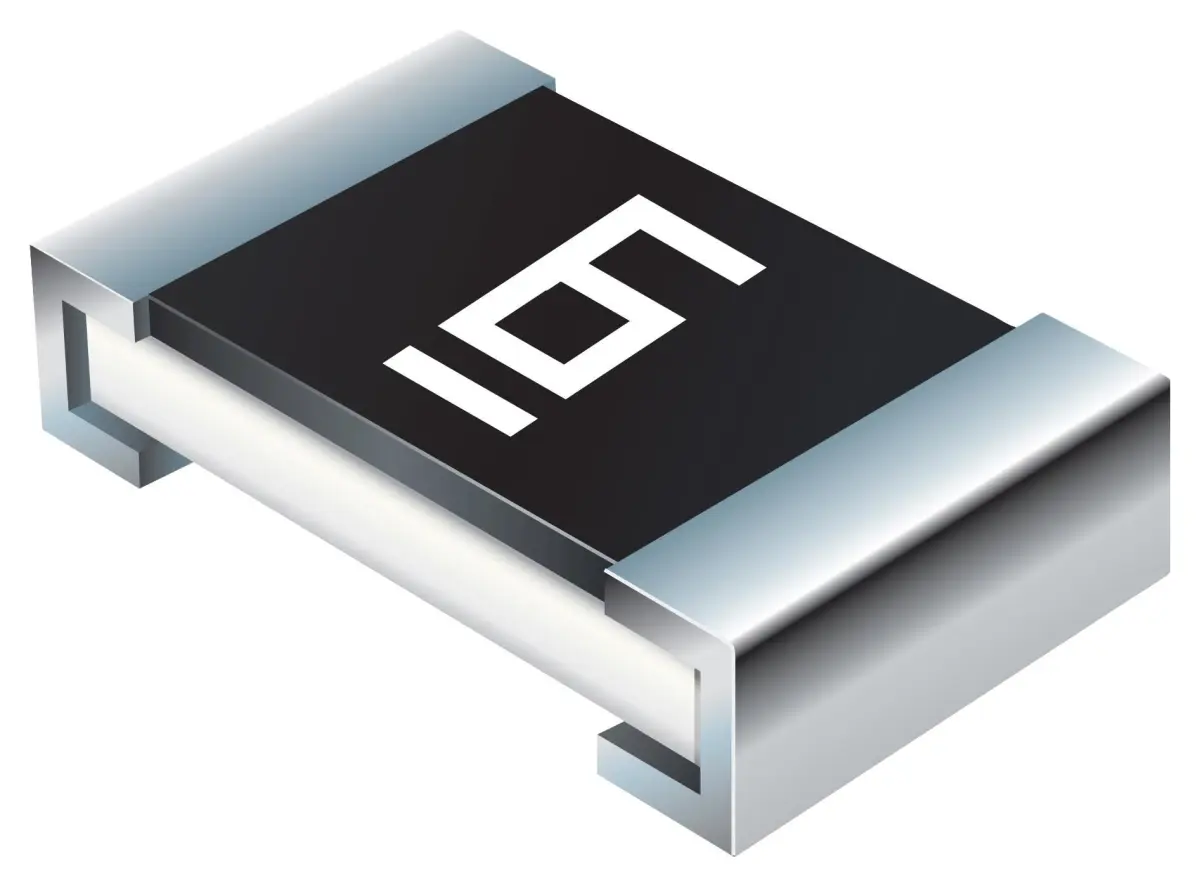

Automotive-grade BOURNS SinglFuse SMD fuse. 1A, 63V DC rating with high interrupting capacity for compact circuit protection.
This item is currently out of stock...
This item is currently out of stock, but you may opt in to be notified when it is back in stock.
Need larger quantities? Need additional quantities? Get in touch and we'll arrange it for you.
- Free UK deliveryOrder by 13:58 UK time on a working day for same-day dispatch
- 30-day returnsUnused, in original packaging
- Secure checkoutCard, PayPal, Apple Pay, Google Pay
Technical Specifications
Documents
- Automotive electronic systems
- Compact circuit boards and PCB designs
- Power supply units
- Electronic applications requiring reliable overcurrent protection
- Ask Claude, ChatGPT or Perplexity to find the right tool, with our live prices and stock.
- Get a ready-made basket: one link puts everything in your basket here.
- You always pay securely here: your assistant never sees your card.
- Product Range: SinglFuse SF-0603SPA-R Series
- Rated Current: 1.0 A
- Rated Voltage: 63 VDC / 50 VDC
- Blow Characteristic: High Current
- Fuse Case Style: 0603 [1608 Metric]
- Typical Resistance: 0.115 Ω (at ≤10% rated current, 25 °C)
- Interrupting Rating: 50 A @ 50 VDC / 50 A @ 63 VDC
- Breaking Capacity Current DC: 50A
- Typical I²t: 0.059 A²s (at 0.001 s pre-arcing time)
- Fusing Characteristics: 1–120 sec @ 200% of rated current
- Clearing Time @ 25 °C: 100% current: ≥4 hours, 200% current: 1–120 seconds
- Construction: Metal foil chip design
- Grade: Automotive-grade
- Dimensions (Package): 43mm x 33mm x 15mm
- Weight: 0.05 grams
- Voltage Rating VDC: 63V
- SVHC: No SVHC (04-Feb-2026)
