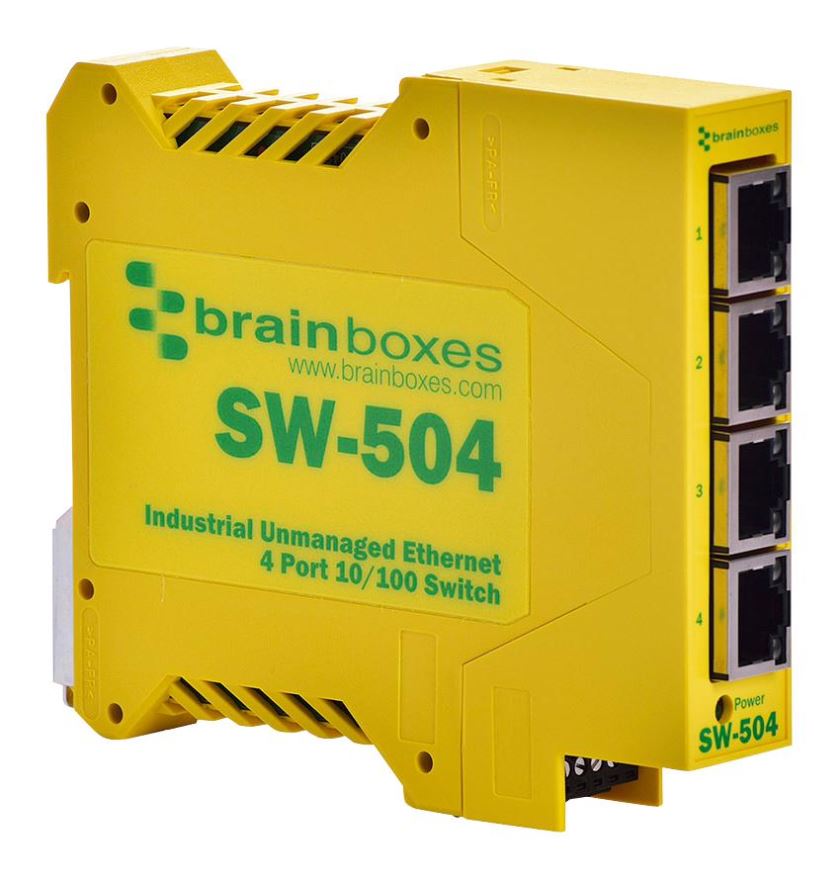

BRAINBOXES 4-Port Industrial Ethernet Switch, DIN Rail Mountable
Robust 4-port industrial Ethernet switch for harsh environments. DIN rail mountable with dual power input.
The BRAINBOXES 4-Port Industrial Ethernet Switch is designed for demanding environments, offering robust performance with galvanically isolated Ethernet ports capable of 10/100 Mbps speeds. Ideal for factory floors, vehicles, and marine applications, this switch ensures reliable connectivity in harsh conditions with an operating temperature range of -40°C to +80°C.
Equipped with a dual-input redundant power supply, the switch supports a wide voltage range (5VDC to 30VDC), allowing it to be powered via USB or from a 24V factory floor supply. The removable power terminal block features numbered pins for simplified wiring, enhancing installation efficiency. Power consumption is optimised based on the link device status, ensuring energy efficiency.
Key Features
- Plug-and-play functionality: No software required for operation.
- Auto MDI/MDI-X crossover support: Ensures seamless connectivity on all ports.
- IP-20 rated case with integrated DIN rail mount: Provides durability and easy installation in industrial settings.
- Robust construction: Designed for extended use in harsh environments.
Applications
- Industrial automation
- Factory floor networking
- Vehicle and marine applications
- Harsh environment installations
- Industrial automation
- Factory floor networking
- Vehicle applications
- Marine applications
- No. of Ports: 4
- Port Types: RJ45 x 4
- Network Speeds: 10Mbps, 100Mbps
- Ethernet Switch Type: Fast Ethernet
- Mounting: DIN Rail
- Operating Temperature: -40°C to +80°C
- Input Voltage: 5VDC to 30VDC
- Power Supply: Dual input redundant
- Case Rating: IP-20
- Dimensions: 88mm x 22mm x 115mm
- Weight: 220g
