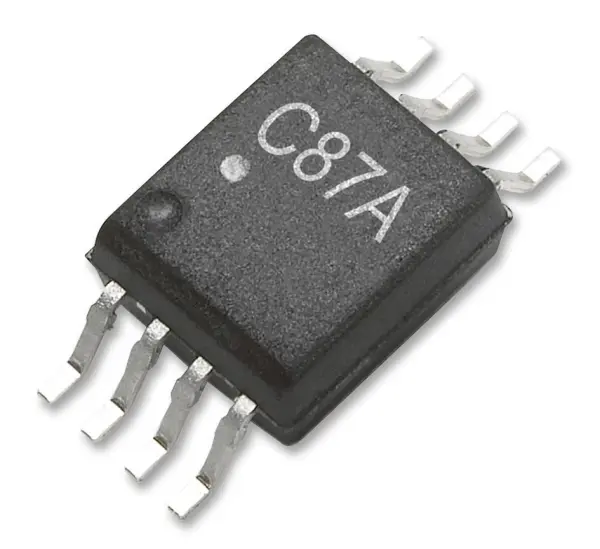

Broadcom ACPL-C870 Optically Isolated Voltage Sensor Amplifier SOIC-8
- SKU
- C3-SC17270
- EAN
- 3562094102291
Broadcom ACPL-C870 optically isolated voltage sensor amplifier in an SOIC-8 package, with 5kVrms isolation and 100kHz bandwidth.
This item is currently out of stock...
This item is currently out of stock, but you may opt in to be notified when it is back in stock.
Need larger quantities? Need additional quantities? Get in touch and we'll arrange it for you.
- Free UK deliveryOrder by 13:58 UK time on a working day for same-day dispatch
- 30-day returnsUnused, in original packaging
- Secure checkoutCard, PayPal, Apple Pay, Google Pay
Technical Specifications
- Electronic power converters
- Monitoring DC link voltages through a resistive divider
- Isolated voltage sensing in demanding applications
- Battery-powered systems
- Ask Claude, ChatGPT or Perplexity to find the right tool, with our live prices and stock.
- Get a ready-made basket: one link puts everything in your basket here.
- You always pay securely here: your assistant never sees your card.
- Package: 8-pin SSO (SOIC-8)
- Isolation Technology: Optical isolation
- Isolation Voltage: 5kVrms
- Input Impedance: 1GΩ
- Nominal Input Voltage Range: 0V to 2V
- Output Type: Differential voltage output
- Maximum Non-Linearity: 0.1%
- Input Side Supply Voltage: 5V
- Output Side Supply Voltage Range: 3V to 5.5V
- Bandwidth: 100kHz
- Gain Drift: -35ppm/°C
- Offset Voltage Drift: 21µV/°C
- Common-Mode Transient Immunity: 15kV/µs
- Shutdown Pin: Active high
- Shutdown Supply Current (IDD1): 15µA
- Operating Temperature Range: -40°C to 105°C
- Safety Approvals: IEC/EN/DIN EN 60747-5-5, UL 1577, CSA
- Weight: 2.419 g
- Width: 3.3
- Depth: 1.5
- Height: 4.3
