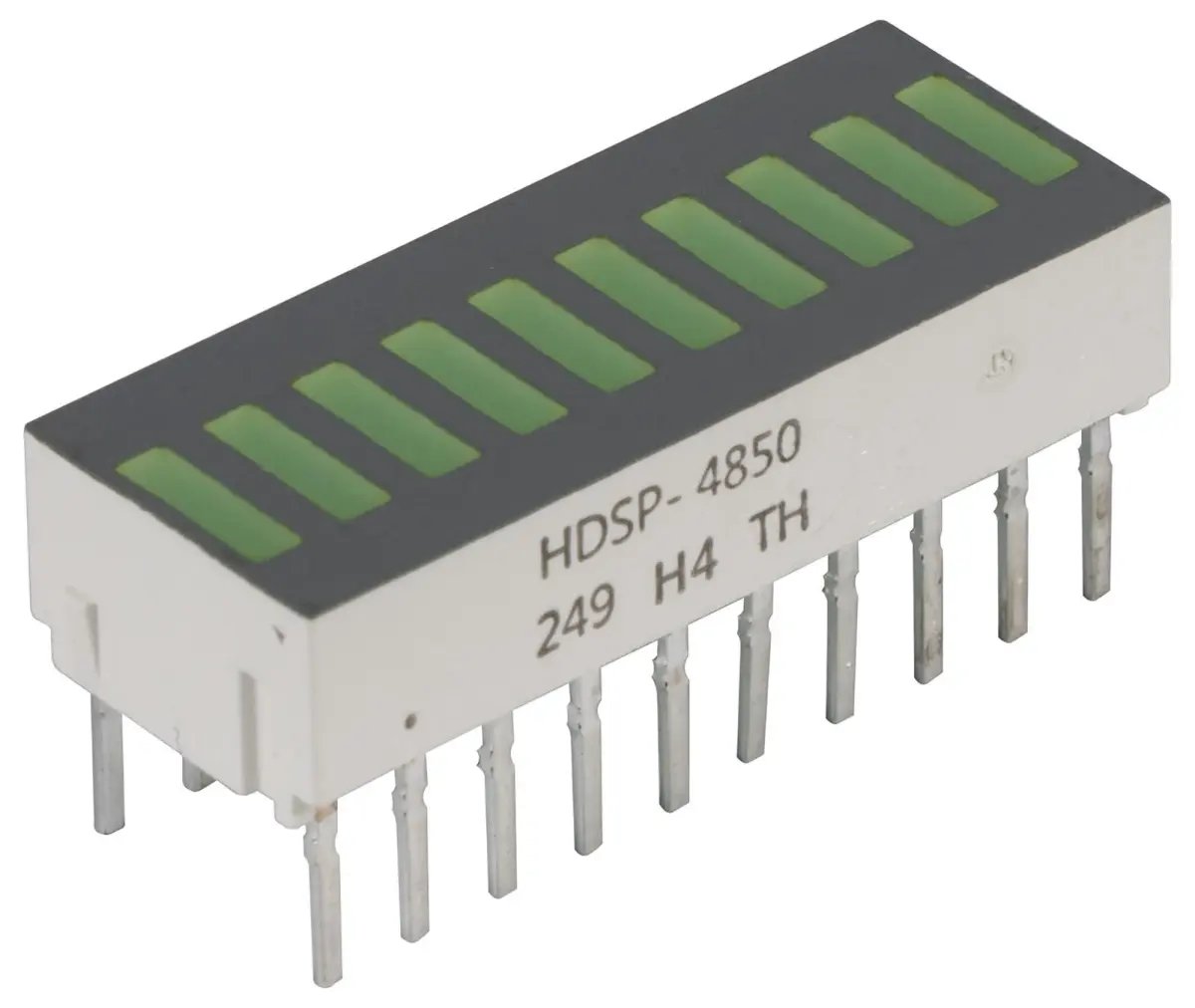

LED Bar Graph Array, Green, 10 LEDs, 25.4mm x 10.16mm

This 10-element LED Bar Graph Array is designed to display information in an easily recognizable bar graph form. By utilising this array, you can eliminate the alignment, intensity, and colour matching problems that are commonly associated with discrete LEDs. The matched LEDs ensure a highly uniform appearance across all segments, providing a clean and professional display for your electronic projects.

Featuring a rugged construction, this array is built to withstand demanding environments while offering large, easily recognizable segments. It delivers a high ON-OFF contrast from segment to segment, ensuring clear and precise readability. The wide viewing angle further enhances visibility from various positions, while the categorisation for luminous intensity and dominant wavelength guarantees consistent performance across the board.

The array is end stackable, allowing for seamless expansion of bar graph displays in your applications. With a green LED colour, a forward current of 20 mA, and a forward voltage of 2.1 V, it operates efficiently. The display size measures 25.4 mm x 10.16 mm, making it compact yet highly effective for visual output.

Key Specifications

• LED Colour: Green
• Number of LEDs: 10
• Forward Current: 20 mA
• Forward Voltage: 2.1 V
• Luminous Intensity: 1.9 mcd
• Display Size: 25.4 mm x 10.16 mm
• Overall Dimensions: 43 mm x 33 mm x 15 mm
• Weight: 5 grams
