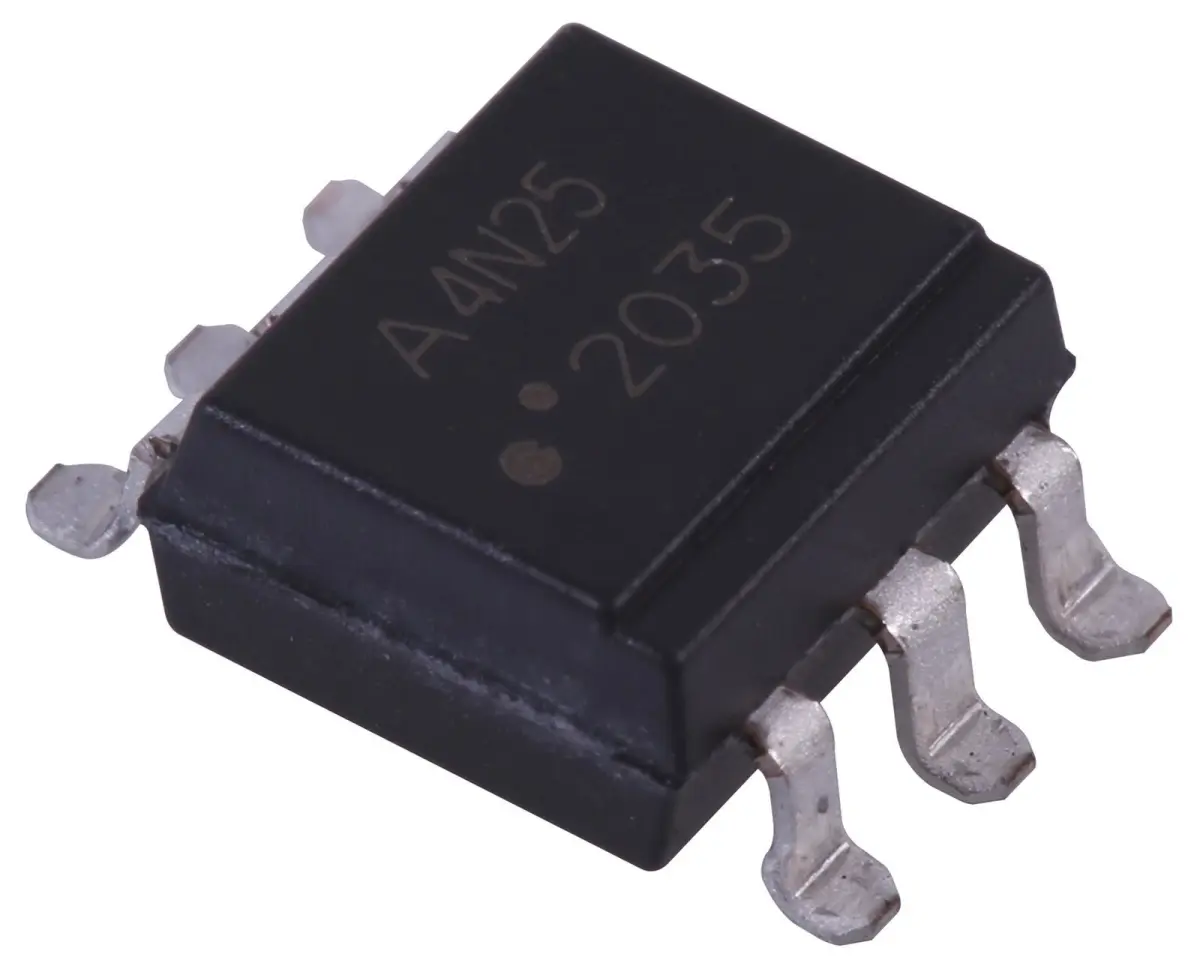

Broadcom Optocoupler 1 Channel SMD DIP 6-Pin 80mA 2.5kV CTR 20%

The Broadcom Transistor Output Optocoupler is designed for general-purpose applications requiring reliable signal isolation. It features a light-emitting diode optically coupled to a photo-transistor, ensuring effective signal transmission between circuits of different potentials and impedances.

This optocoupler is an ideal choice for I/O interfaces in computers, system appliances, and measuring instruments. It comes in a 300 mil DIP-6 surface mount package, offering a compact and efficient solution for your circuit design needs.

Key Performance Specifications

• Forward Voltage: 1.2V typ at IF=10 mA, TA=25°C
• Reverse Current: 10µA max at VR=4V, TA=25°C
• Terminal Capacitance: 50pF typ at V=0, f=1kHz, TA=25°C
• Collector Dark Current: 50nA max at VCE=10V, IF=0, TA=25°C
• Current Transfer Ratio (CTR): 20% min at VCE=10V, TA=25°C
• Response Time (Rise): 3µs typ at VCE=10V, IC=2mA, TA=25°C
• Response Time (Fall): 3µs typ at RL=100 ohm, TA=25°C
• Operating Temperature Range: -55°C to +100°C

Approved to UL, CSA, and IEC/EN/DIN EN 60747-5-2 standards, this component guarantees compliance with stringent safety and performance requirements. Its robust isolation voltage of 2.5kV and maximum forward current of 80mA make it a versatile and dependable choice for a wide range of electronic isolation needs.
