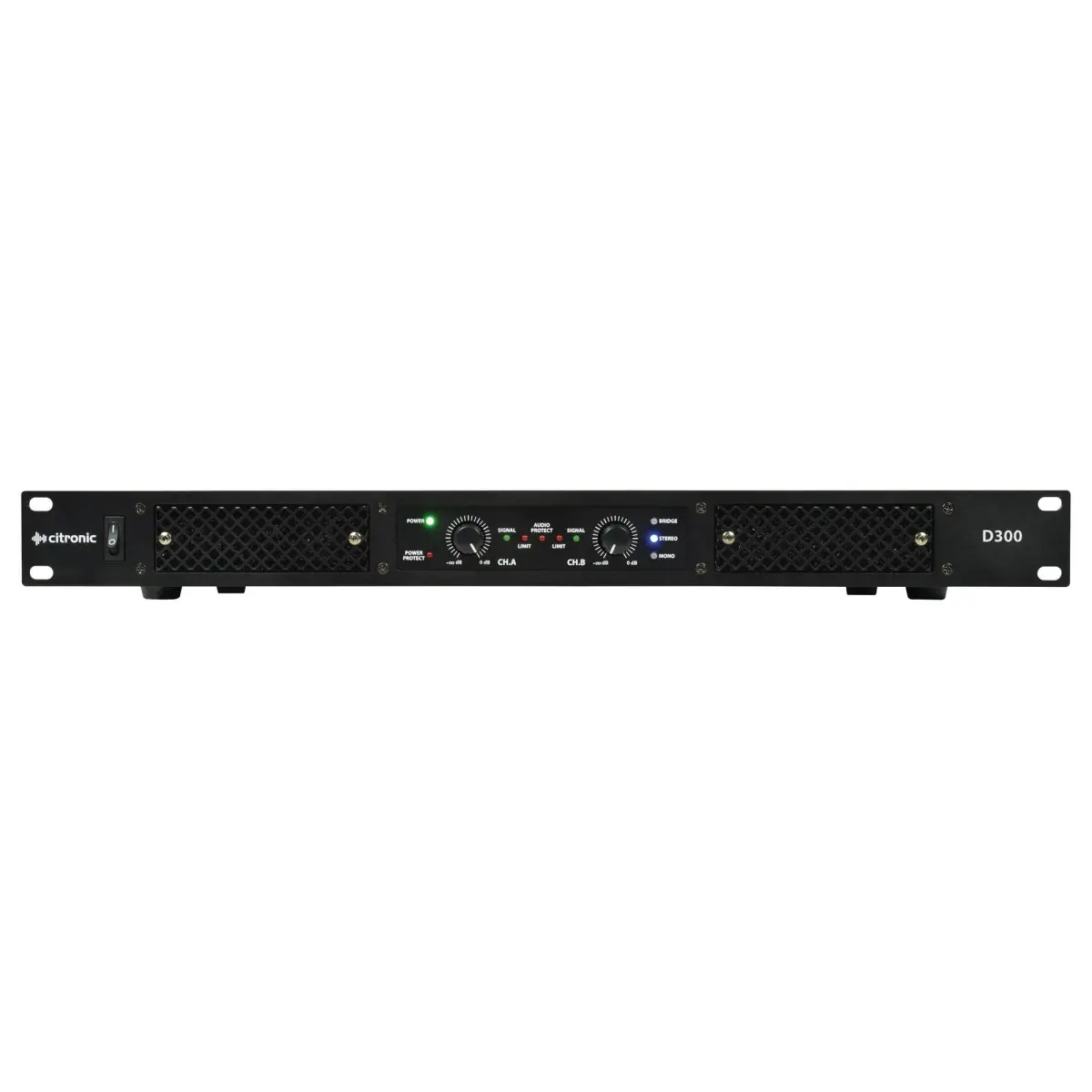

Citronic Class-D Power Amplifier 2x 150W 1U Rack

Citronic Class-D Power Amplifier 2x 150W 1U Rack is a professional stereo power amplifier delivering 2 x 150W RMS into 4 Ohms, housed in a compact, lightweight 1U rack-mountable case.

Overview

The efficient Class-D circuit architecture converts power into clean, impactful audio, making this amplifier suited to driving medium to large speaker cabinets in a variety of sound reinforcement applications. Custom cooling technology supports consistent operation, including during prolonged use at high output levels. An inbuilt limiter circuit engages at peak output to help protect connected speakers from overload.

Key Features

• Switchable operating modes: Stereo, Parallel (mono) and Bridge (mono)
• Selectable input sensitivity from 0.775V to 1.44V
• Switchable 75Hz low-cut filter
• Inbuilt limiter circuit to help prevent speaker overload
• Input via female XLR connectors, with male XLR through
• Output via secure speaker connectors
• Custom cooling technology for operation at high output levels
• Lightweight 1U rack format for flight cases and equipment racks

Power Output

• 2 x 150W RMS into 4 Ohms
• 2 x 75W RMS into 8 Ohms
• 1 x 300W in bridged mono mode into 8 Ohms

Dimensions and Power Supply

The amplifier measures 3.3 (width) x 1.5 (depth) x 4.3 (height) and weighs 4703 gm. It is compatible with 220V to 240V supplies. The stereo, parallel mono and bridge mono modes allow the amplifier to be tailored to different speaker configurations and venues, handling demanding audio duties in sound reinforcement setups.

Choose the Citronic Class-D Power Amplifier 2x 150W 1U Rack when you need a compact, flexible stereo amplifier for driving medium to large speaker cabinets.
