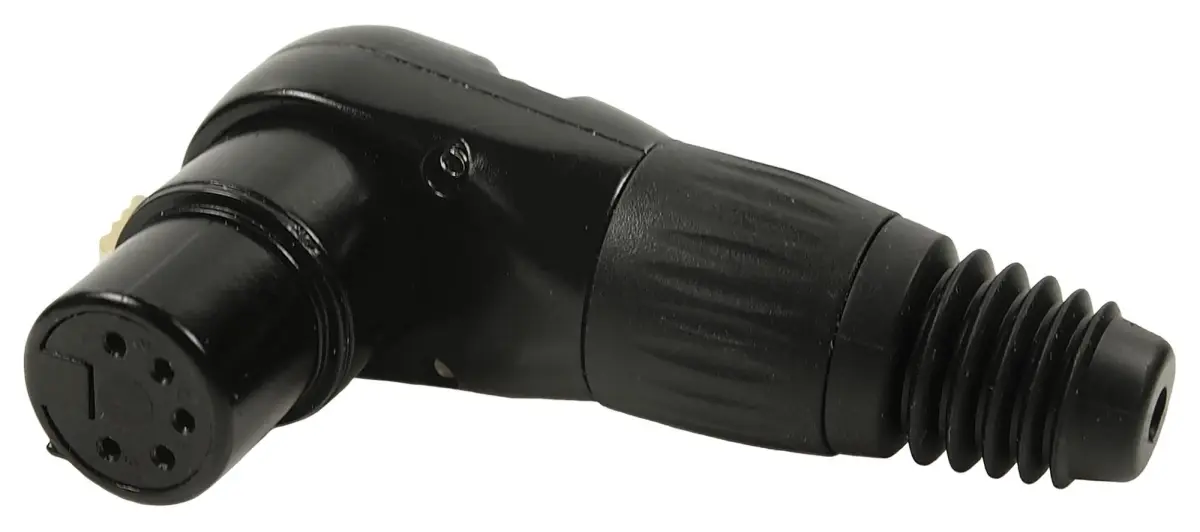

CLIFF FC619315 RAMP 5-Pole Right Angle XLR Socket, 8-Position Adjustable

The CLIFF FC619315 RAMP 5-Pole Right Angle XLR Socket is a highly versatile cable mount connector designed for professional audio and technical applications. Its defining feature is an adjustable body that can be rotated into any of eight distinct positions around the plug. This innovative design ensures optimal cable routing and access from virtually any direction, simplifying installations in tight or complex spaces.

Constructed to deliver reliable performance, this 5-pole socket is rated for a current of 7.5A. It is supplied with a practical black strain relief boot, which helps to protect the cable termination from stress and pull-out, thereby extending the lifespan of both the connector and the cable assembly. The strain relief is compatible with a wide range of outside cable diameters from 3.5mm up to 8mm.

Part of the esteemed FC61930x (RAMP) series from CLIFF, this component is engineered for durability and ease of use. Its compact form factor makes it suitable for a variety of equipment where space is at a premium, without compromising on connectivity or robustness. The right-angle design is particularly beneficial for reducing the profile of cable connections, helping to keep panels and casings neat.

Key Specifications

• Connector Type: 5-pole XLR Socket
• Mounting: Cable Mount
• Body Feature: 8-position adjustable rotation
• Current Rating: 7.5A
• Cable Compatibility: 3.5mm to 8mm outside diameter
• Included Accessory: Black strain relief boot
• Dimensions: 71.3mm x 42mm (body)
• Weight: 10 grams

This adjustable right-angle socket is an essential component for audio engineers, equipment manufacturers, and technical installers seeking a flexible and reliable connection solution.
